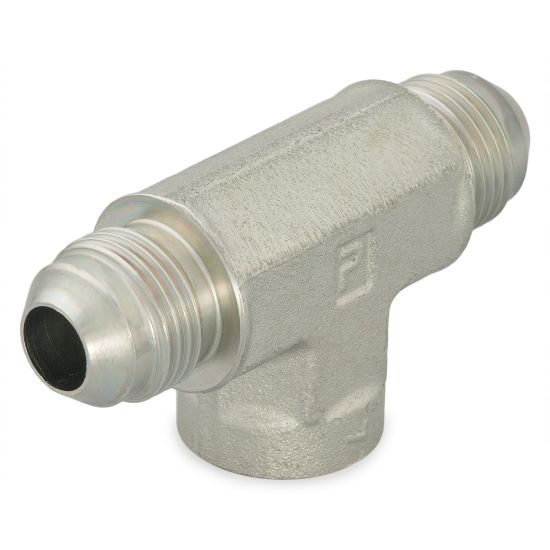

Triple-Lok® 37° Flare JIC Tube Fittings and Adapters - 10 OTX-SS

Name: Triple-Lok® 37° Flare JIC Tube Fittings and Adapters - 10 OTX-SS
SKU: 10 OTX-SS

Parker Triple-Lok 37° Flare JIC Tube Fittings and Adapters are a reliable leak-free metal to metal connection solution for most high pressure hydraulic applications.

Availability:

Backordered

SKU 10 OTX-SS

$170.08

Products specifications

Attribute name	Attribute value
UOM	EA	Division	Tube Fittings Division
Body Material	Stainless Steel	Connection 4 Size	na
Maximum Dynamic Pressure	3000 psi	Connection Type	37° Flare
O-Ring Material	na	Specifications Met	SAE J514
Connection 2 Thread Size	na	Connection 3 Thread Size	na
Connection 1 Tube Outside Diameter	5/8 inch	Connection 3 Tube Outside Diameter	na
Connection 4 Tube Outside Diameter	na	Connection 1 Size	Male 37° Flare
Connection 2 Size	Male 37° Flare	Connection 2 Tube Outside Diameter	14, 15, 16 mm
Shape	Tee	Connection 3 Size	Female NPT/NPTF
