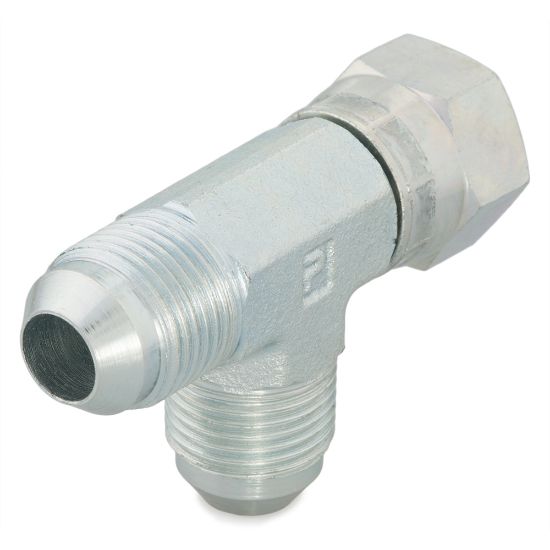

Picture of Triple-Lok® 37° Flare JIC Tube Fittings and Adapters - 10 R6X-S

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

Triple-Lok® 37° Flare JIC Tube Fittings and Adapters - 10 R6X-S

Parker Triple-Lok 37° Flare JIC Tube Fittings and Adapters are a reliable leak-free metal to metal connection solution for most high pressure hydraulic applications.
Availability:
23 in stock
TOPEKA, KS5
Kansas City, KS3
WICHITA, KS2
Springfield, MO2
COLUMBIA, MO2
Kansas City, KS2
Joplin, MO2
Peoria, IL2
Decatur, IL2
Olivette, MO1
SKU 10 R6X-S
$27.49
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Attribute nameAttribute value
UOMEADivisionTube Fittings Division
Body MaterialSteelConnection 4 Sizena
Maximum Dynamic Pressure5000 psiConnection Type37° Flare
O-Ring MaterialnaSpecifications MetSAE J514
Connection 2 Thread SizenaConnection 3 Thread Sizena
Connection 1 Tube Outside Diameter5/8 inchConnection 4 Tube Outside Diameterna
Connection 1 SizeMale 37° FlareConnection 2 SizeFemale 37° Flare Swivel
Connection 2 Tube Outside Diameter14, 15, 16 mmDimensional Weight0.07710347347122302 lb
ShapeTeeConnection 3 Tube Outside Diameter14, 15, 16 mm
Connection 3 SizeMale 37° Flare
