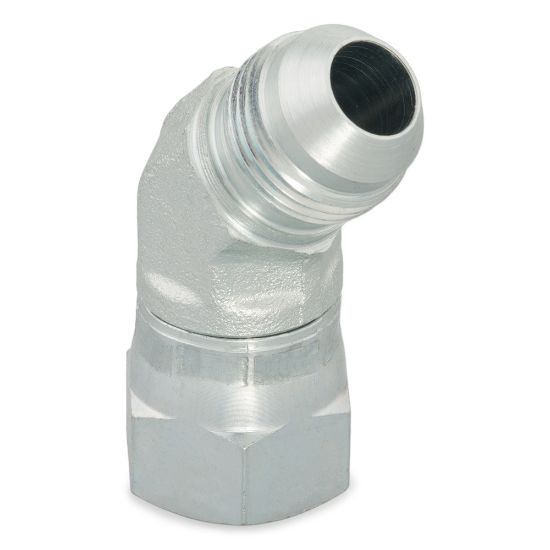

Picture of Triple-Lok® 37° Flare JIC Tube Fittings and Adapters - 10 V6X-S ZJ

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

Triple-Lok® 37° Flare JIC Tube Fittings and Adapters - 10 V6X-S ZJ

Parker Triple-Lok 37° Flare JIC Tube Fittings and Adapters are a reliable leak-free metal to metal connection solution for most high pressure hydraulic applications.
Availability:
Backordered
SKU 10 V6X-S ZJ
POR
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Attribute nameAttribute value
UOMEADivisionTube Fittings Division
Connection 4 SizenaMaximum Dynamic Pressure5000 psi
Body MaterialSteel, Zinc NickelO-Ring Materialna
Specifications MetSAE J514Connection 2 Thread Sizena
Connection 3 Thread SizenaConnection 1 Tube Outside Diameter5/8 inch
Connection 3 Tube Outside DiameternaConnection 4 Tube Outside Diameterna
Connection 1 SizeMale 37° FlareConnection 3 Sizena
Connection TypeTube to TubeConnection 2 SizeFemale 37° Flare Swivel
Connection 2 Tube Outside Diameter14, 15, 16 mmShape45° Elbow
