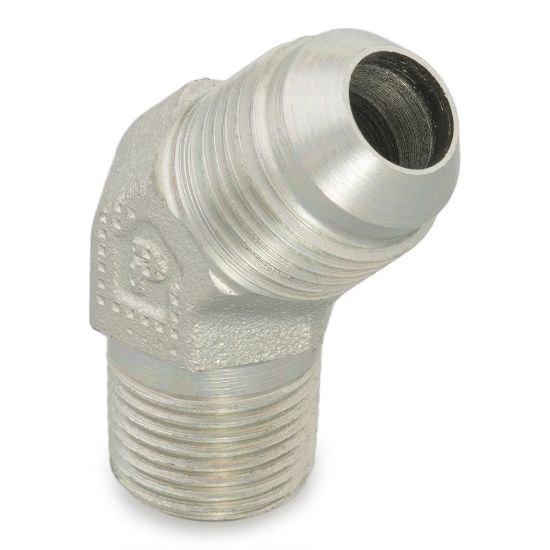

Picture of Triple-Lok® 37° Flare JIC Tube Fittings and Adapters - 10 VTX-B

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

Triple-Lok® 37° Flare JIC Tube Fittings and Adapters - 10 VTX-B

Parker Triple-Lok 37° Flare JIC Tube Fittings and Adapters are a reliable leak-free metal to metal connection solution for most high pressure hydraulic applications.
Availability:
Backordered
SKU 10 VTX-B
$36.74
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Attribute nameAttribute value
UOMEABody MaterialBrass
DivisionTube Fittings DivisionConnection 4 Sizena
Dimensional Weight0.062320143884892085 lbConnection Type37° Flare
Maximum Dynamic Pressure3300 psiO-Ring Materialna
Specifications MetSAE J514Connection 2 Thread Sizena
Connection 3 Thread SizenaConnection 1 Tube Outside Diameter5/8 inch
Connection 2 Tube Outside DiameternaConnection 3 Tube Outside Diameterna
Connection 4 Tube Outside DiameternaConnection 1 SizeMale 37° Flare
Connection 3 SizenaConnection 2 SizeMale NPT/NPTF
Shape45° Elbow
