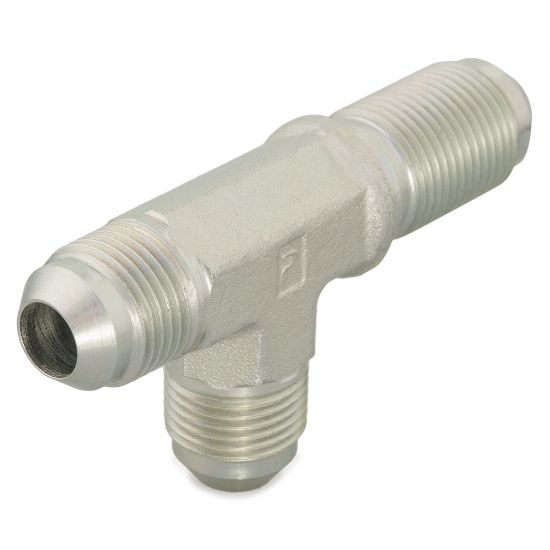

Picture of Triple-Lok® 37° Flare JIC Tube Fittings and Adapters - 10 WJJTX-S

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

Triple-Lok® 37° Flare JIC Tube Fittings and Adapters - 10 WJJTX-S

Parker Triple-Lok 37° Flare JIC Tube Fittings and Adapters are a reliable leak-free metal to metal connection solution for most high pressure hydraulic applications.
Availability:
Backordered
SKU 10 WJJTX-S
$64.44
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Attribute nameAttribute value
UOMEADivisionTube Fittings Division
Body MaterialSteelConnection 4 Sizena
Maximum Dynamic Pressure5000 psiConnection Type37° Flare
O-Ring MaterialnaSpecifications MetSAE J514
Connection 2 Thread SizenaConnection 3 Thread Sizena
Connection 1 Tube Outside Diameter5/8 inchConnection 4 Tube Outside Diameterna
Connection 1 SizeMale 37° FlareConnection 2 Tube Outside Diameter5/8 inch
ShapeTeeConnection 3 Tube Outside Diameter5/8 inch
Connection 3 SizeMale 37° FlareConnection 2 SizeMale 37° Flare Bulkhead
