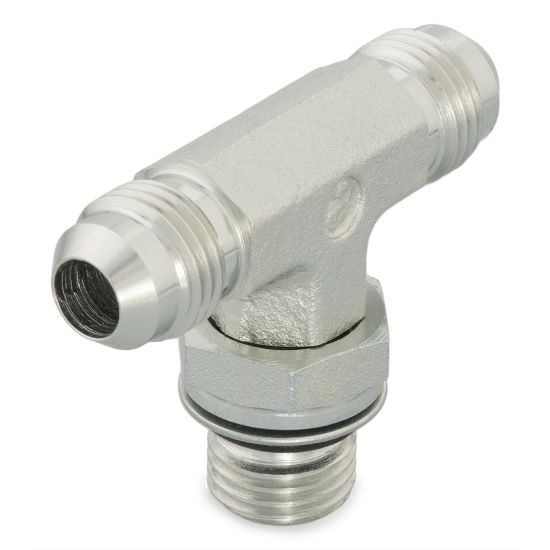

6M14S87OMXS - Triple-Lok® 37° Flare JIC Tube Fittings and Adapters

Parker Triple-Lok 37° Flare JIC Tube Fittings and Adapters are a reliable leak-free metal to metal connection solution for most high pressure hydraulic applications.

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 220 days
Partner Available:	8 in stock

SKU 6M14S87OMXS

$53.39/each

Bypass upcharge for backordered quantity. Check this box if you prefer to backorder out of stock quantities from Hyspeco for this item, then click Add To Cart.

Products specifications

Attribute name	Attribute value
UOM	EA	Connection 1 Size	Male 37° Flare
Maximum Dynamic Pressure	6000 psi	Connection 4 Size	na
Connection 3 Size	Male ISO 6149	Connection 2 Tube Outside Diameter	10 mm
Specifications Met	SAE J514 and ISO 8434-2	Connection 3 Tube Outside Diameter	na
Connection 3 Thread Size	na	Connection 1 Tube Outside Diameter	3/8 inch
Body Material	Steel	Shape	Tee
Connection 4 Tube Outside Diameter	na	O-Ring Material	90 Durometer Nitrile
Division	Tube Fittings Division	Connection 2 Size	Male 37° Flare
Connection 2 Thread Size	na	Connection Type	37° Flare

Product resources

Literature and Reference Materials

Compliance, Certifications & Safety

Lloyds Register Zertifikat LR2382868TA-Triple-Lok (PDF)
