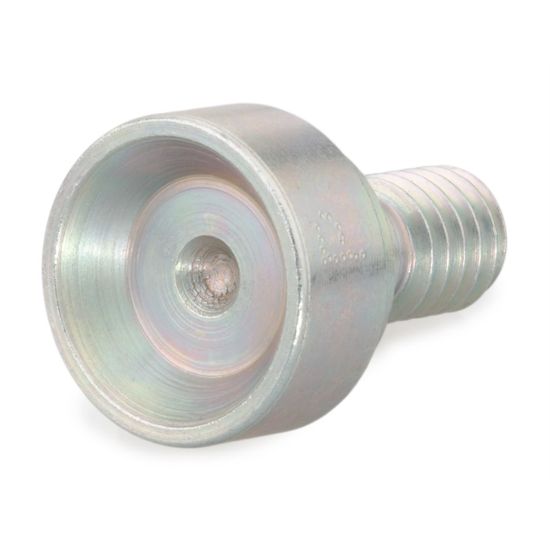

8 T22X-S - Triple-Lok® 37° Flare JIC Tube Fittings and Adapters

Parker Triple-Lok 37° Flare JIC Tube Fittings and Adapters are a reliable leak-free metal to metal connection solution for most high pressure hydraulic applications.

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 14 days
Partner Available:	70 in stock

SKU 8 T22X-S

$9.41/each

Bypass upcharge for backordered quantity. Check this box if you prefer to backorder out of stock quantities from Hyspeco for this item, then click Add To Cart.

Products specifications

Attribute name	Attribute value
Connection 4 Size	na	Connection 3 Size	na
Connection 2 Tube Outside Diameter	na	Connection 2 Thread Size	na
Connection 2 Size	Male Bolt Threads	Connection 3 Thread Size	na
Connection 3 Tube Outside Diameter	na	Specifications Met	SAE J514
Maximum Dynamic Pressure	6000 psi	Connection 1 Size	Female 37° Flare
Body Material	Steel	O-Ring Material	na
Dimensional Weight	0.039568345323741004 lb	Connection Type	37° Flare
Division	Tube Fittings Division	Shape	Cap
Connection 4 Tube Outside Diameter	na	Connection 1 Tube Outside Diameter	1/2 inch

Product resources

Compliance, Certifications & Safety

Lloyds Register Zertifikat LR2382868TA-Triple-Lok (PDF)

Literature and Reference Materials
