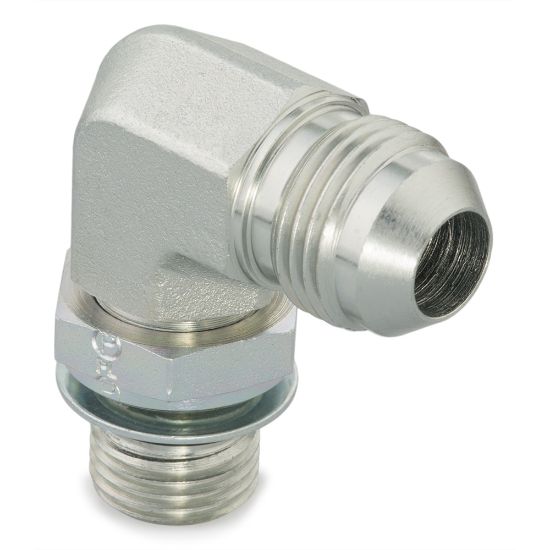

Triple-Lok® 37° Flare JIC Tube Fittings and Adapters - 8M18C87OMXSS

Name: Triple-Lok® 37° Flare JIC Tube Fittings and Adapters - 8M18C87OMXSS
SKU: 8M18C87OMXSS

Parker Triple-Lok 37° Flare JIC Tube Fittings and Adapters are a reliable leak-free metal to metal connection solution for most high pressure hydraulic applications.

Availability:

Backordered

SKU 8M18C87OMXSS

$240.42

Products specifications

Attribute name	Attribute value
UOM	EA	Connection 3 Tube Outside Diameter	na
Specifications Met	SAE J514 and ISO 8434-2	Connection 3 Thread Size	na
Connection 3 Size	na	Connection 1 Tube Outside Diameter	12 mm
Shape	90° Elbow	Connection 2 Thread Size	M18x1.5 mm
Connection 4 Tube Outside Diameter	na	Division	Tube Fittings Division
Connection 4 Size	na	Connection Type	37° Flare
O-Ring Material	90 Durometer Nitrile	Connection 1 Size	Male 37° Flare
Maximum Dynamic Pressure	5000 psi	Body Material	Stainless Steel
Connection 2 Size	Male ISO 6149	Connection 2 Tube Outside Diameter	na

Product resources

Compliance, Certifications & Safety

Lloyds Register Zertifikat LR2382868TA-Triple-Lok (PDF)

Literature and Reference Materials
