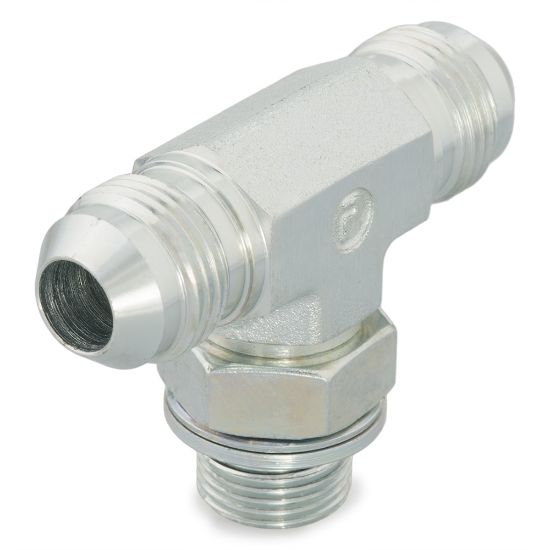

8S4OMXS - Triple-Lok® 37° Flare JIC Tube Fittings and Adapters

Parker Triple-Lok 37° Flare JIC Tube Fittings and Adapters are a reliable leak-free metal to metal connection solution for most high pressure hydraulic applications.

Availability:	Backordered Estimated Lead Time: 269 days
Partner Available:	13 in stock

SKU 8S4OMXS

$57.15/each

Bypass upcharge for backordered quantity. Check this box if you prefer to backorder out of stock quantities from Hyspeco for this item, then click Add To Cart.

Products specifications

Attribute name	Attribute value
UOM	EA	Connection 2 Thread Size	na
Connection 4 Size	na	Shape	Tee
Maximum Dynamic Pressure	3600 psi	Connection 3 Size	Male BSPP O-Ring Retaining Ring
O-Ring Material	90 Durometer Nitrile	Connection 1 Tube Outside Diameter	12 mm
Body Material	Steel	Connection 2 Size	Male 37° Flare
Connection 4 Tube Outside Diameter	na	Connection Type	37° Flare
Specifications Met	SAE J514	Connection 3 Thread Size	na
Connection 3 Tube Outside Diameter	na	Connection 2 Tube Outside Diameter	12 mm
Connection 1 Size	Male 37° Flare

Product resources

Literature and Reference Materials

Compliance, Certifications & Safety

Lloyds Register Zertifikat LR2382868TA-Triple-Lok (PDF)
