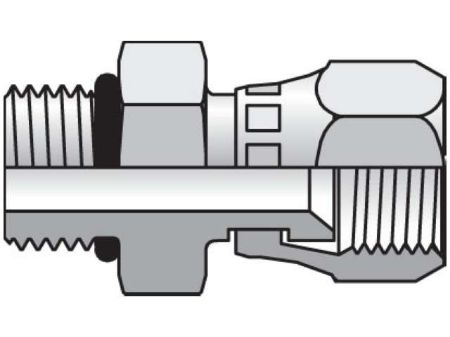

Triple-Lok 37° Straight Swivel F65OX
*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.
Triple-Lok® 37° flare tube fittings and adapters are the most popular industrial tube/hose fitting connection in the world. Simply by changing the industry standard sleeve, the same Triple-Lok body can be adapted to metric tubing in sizes ranging from 6 mm tube O.D. to 38 mm tube O.D. Likewise, by using only the body without the nut and sleeve, the Triple-Lok fitting is used as an industry standard hose adapter.
Read More...| Action | SKU | Availability | Partner Available | Price | UOM | UOM | Material | Pkg Qty/UOM | Pkg Qty | End 1 | O-Ring/Seal Material | End 2 | Parker Group | Parker Division | Material | Inch/Metric | End 1 Type | End 1 | O-Ring/Seal Material | Series | Tube Fitting/Adapter Type | End 2 Type | Trade Name | Configuration Type | Configuration Sub-Type | End 2 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 10-8 F65OX-S FKM | Backordered | Backordered | $40.32/each | EA | EA | Steel | 5 EA | 5 | 5/8 Inch | Fluorocarbon | 3/4-16 UN/UNF-2A | Fluid Connector | Tube Fitting | Steel | Inch | Inch | 5/8 Inch | Fluorocarbon | 37° | 37°, Triple-Lok | UN/UNF-2A | Triple-Lok | Straight Swivel | Swivel Straight Thread Connector 37° Swivel / SAE-ORB | 3/4-16 UN/UNF-2A | |
| 12 F65OX-SS FKM | Backordered | Backordered | $305.82/each | EA | EA | Stainless Steel | 5 EA | 5 | 3/4 Inch | Fluorocarbon | 1 1/16-12 UN/UNF-2A | Fluid Connector | Tube Fitting | Stainless Steel | Inch | Inch | 3/4 Inch | Fluorocarbon | 37° | 37°, Triple-Lok | UN/UNF-2A | Triple-Lok | Straight Swivel | Swivel Straight Thread Connector 37° Swivel / SAE-ORB | 1 1/16-12 UN/UNF-2A | |
| 20 F65X-S | Backordered | Backordered | $124.56/each | EA | EA | Steel | 1 EA | 1 | 1 1/4 Inch | 1 5/8-12 UN/UNF-2A | Fluid Connector | Tube Fitting | Steel | Inch | Inch | 1 1/4 Inch | 37° | 37°, Triple-Lok | UN/UNF-2A | Triple-Lok | Straight Swivel | Swivel Straight Thread Connector 37° Swivel / SAE-ORB | 1 5/8-12 UN/UNF-2A | |||
| 6 F65X-S | Backordered | Backordered | $24.80/each | EA | EA | Steel | 10 EA | 10 | 3/8 Inch | 9/16-18 UN/UNF-2A | Fluid Connector | Tube Fitting | Steel | Inch | Inch | 3/8 Inch | 37° | 37°, Triple-Lok | UN/UNF-2A | Triple-Lok | Straight Swivel | Swivel Straight Thread Connector 37° Swivel / SAE-ORB | 9/16-18 UN/UNF-2A | |||
| 8 F65X-S | Backordered | Backordered | $32.73/each | EA | EA | Steel | 10 EA | 10 | 1/2 Inch | 3/4-16 UN/UNF-2A | Fluid Connector | Tube Fitting | Steel | Inch | Inch | 1/2 Inch | 37° | 37°, Triple-Lok | UN/UNF-2A | Triple-Lok | Straight Swivel | Swivel Straight Thread Connector 37° Swivel / SAE-ORB | 3/4-16 UN/UNF-2A | |||
| 8-6 F65X-S | Backordered | Backordered | $16.19/each | EA | EA | Steel | 10 EA | 10 | 1/2 Inch | 9/16-18 UN/UNF-2A | Fluid Connector | Tube Fitting | Steel | Inch | Inch | 1/2 Inch | 37° | 37°, Triple-Lok | UN/UNF-2A | Triple-Lok | Straight Swivel | Swivel Straight Thread Connector 37° Swivel / SAE-ORB | 9/16-18 UN/UNF-2A |
