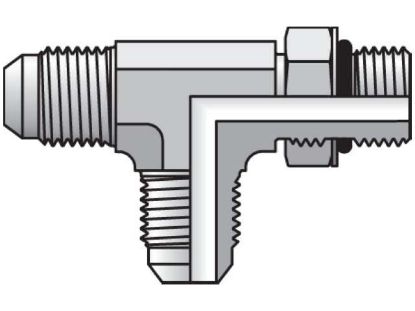

Triple-Lok 37° Tee R5OX
*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.
Triple-Lok® 37° flare tube fittings and adapters are the most popular industrial tube/hose fitting connection in the world. Simply by changing the industry standard sleeve, the same Triple-Lok body can be adapted to metric tubing in sizes ranging from 6 mm tube O.D. to 38 mm tube O.D. Likewise, by using only the body without the nut and sleeve, the Triple-Lok fitting is used as an industry standard hose adapter.
Read More...| Action | SKU | Availability | Partner Available | Price | UOM | UOM | Material | Pkg Qty/UOM | Pkg Qty | End 1 | End 2 | End 3 | Parker Group | Parker Division | Material | Inch/Metric | End 1 Type | End 1 | Configuration Type | End 3 Type | Series | Tube Fitting/Adapter Type | End 2 | End 2 Type | Trade Name | End 3 | Configuration Sub-Type | O-Ring/Seal Material | O-Ring/Seal Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 10 R5OX-S | 17 in stock | 211 in stock | $31.26/each | EA | EA | Steel | 5 EA | 5 | 5/8 Inch | 7/8-14 UN/UNF-2A | 5/8 Inch | Fluid Connector | Tube Fitting | Steel | Inch | Inch | 5/8 Inch | Tee | Inch | 37° | 37°, Triple-Lok | 7/8-14 UN/UNF-2A | UN/UNF-2A | Triple-Lok | 5/8 Inch | Straight Thread Run Tee 37° Flare / SAE-ORB / 37° Flare | |||
| 12 R5BX-S | Backordered | 4 in stock | $61.26/each | EA | EA | Steel | 5 EA | 5 | 3/4 Inch | 1 1/16-12 UN/UNF-2A | 3/4 Inch | Fluid Connector | Tube Fitting | Steel | Inch | Inch | 3/4 Inch | Tee | Inch | 37° | 37°, Triple-Lok | 1 1/16-12 UN/UNF-2A | UN/UNF-2A | Triple-Lok | 3/4 Inch | Straight Thread Run Tee 37° Flare / SAE-ORB / 37° Flare | |||
| 16 R5BX-S | Backordered | Backordered | $86.67/each | EA | EA | Steel | 4 EA | 4 | 1 Inch | 1 5/16-12 UN/UNF-2A | 1 Inch | Fluid Connector | Tube Fitting | Steel | Inch | Inch | 1 Inch | Tee | Inch | 37° | 37°, Triple-Lok | 1 5/16-12 UN/UNF-2A | UN/UNF-2A | Triple-Lok | 1 Inch | Straight Thread Run Tee 37° Flare / SAE-ORB / 37° Flare | |||
| 24 R5OX-S FKM | Backordered | Backordered | $141.22/each | EA | EA | Steel | 1 EA | 1 | 1 1/2 Inch | 1 7/8-12 UN/UNF-2A | 1 1/2 Inch | Fluid Connector | Tube Fitting | Steel | Inch | Inch | 1 1/2 Inch | Tee | Inch | 37° | 37°, Triple-Lok | 1 7/8-12 UN/UNF-2A | UN/UNF-2A | Triple-Lok | 1 1/2 Inch | Straight Thread Run Tee 37° Flare / SAE-ORB / 37° Flare | Fluorocarbon | Fluorocarbon | |
| 6 R5BX-S | 4 in stock | Backordered | $20.53/each | EA | EA | Steel | 10 EA | 10 | 3/8 Inch | 9/16-18 UN/UNF-2A | 3/8 Inch | Fluid Connector | Tube Fitting | Steel | Inch | Inch | 3/8 Inch | Tee | Inch | 37° | 37°, Triple-Lok | 9/16-18 UN/UNF-2A | UN/UNF-2A | Triple-Lok | 3/8 Inch | Straight Thread Run Tee 37° Flare / SAE-ORB / 37° Flare | |||
| 8 R5BX-S | Backordered | Backordered | $25.30/each | EA | EA | Steel | 10 EA | 10 | 1/2 Inch | 3/4-16 UN/UNF-2A | 1/2 Inch | Fluid Connector | Tube Fitting | Steel | Inch | Inch | 1/2 Inch | Tee | Inch | 37° | 37°, Triple-Lok | 3/4-16 UN/UNF-2A | UN/UNF-2A | Triple-Lok | 1/2 Inch | Straight Thread Run Tee 37° Flare / SAE-ORB / 37° Flare |
