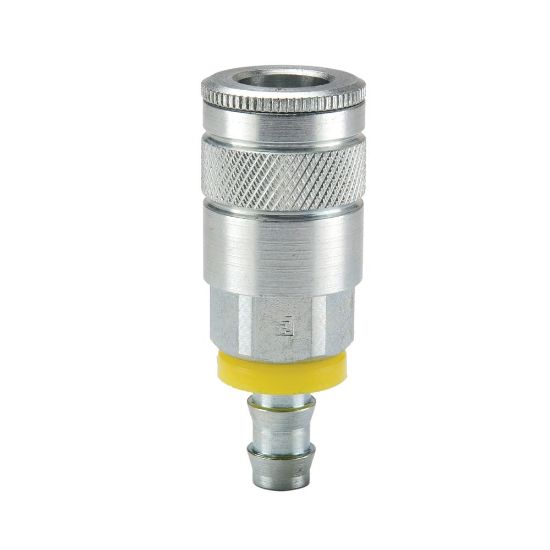

14-5BP - Tru-Flate, Automotive Interchange Quick Connect Air Couplings - 10 Series

Name: 14-5BP - Tru-Flate, Automotive Interchange Quick Connect Air Couplings - 10 Series
SKU: 14-5BP
Price: 44.19 USD
Availability: InStock

Parker's general purpose Tru-Flate pneumatic, quick connect air couplers and nipples are ideal for use across a spectrum of applications where low pressure air or fluid lines require fast and easy connection and disconnection.

Availability:

18 in stock

Wichita, KS	7
WICHITA, KS	6
Springfield, MO	2
COLUMBIA, MO	1
Kansas City, KS	1
Peoria, IL	1

Partner Available:

178 in stock

Quantities sourced from Partner Network will incur a 30% upcharge from the displayed price. Unit prices will be adjusted accordingly when these quantities are added to your cart.

SKU 14-5BP

$44.19/each

Qty:

Bypass upcharge for backordered quantity. Check this box if you prefer to backorder out of stock quantities from Hyspeco for this item, then click Add To Cart.

Products specifications

Attribute name	Attribute value
UOM	EA	Body Material	Steel
Hose I.D. (inch)	3/8	Body Size (inch)	3/8
Coupling Half	Female Coupler	Connection Thread Size (inch)	na
Connection Type	Push-Lok hose barb	Minimum Operating Temperature	-40 °F
Seal Material	Nitrile	Maximum Operating Temperature	250 °F
Plating Type	Zinc with clear trivalent chromate	Interchange Type	Tru-Flate design
Maximum Operating Pressure	300 psi	Valve Type	Tubular
Hex Size	na inch

Product resources

Literature and Reference Materials

Compliance, Certifications & Safety

Safety Guide: Quick Couplings and Related Accessories (PDF)
