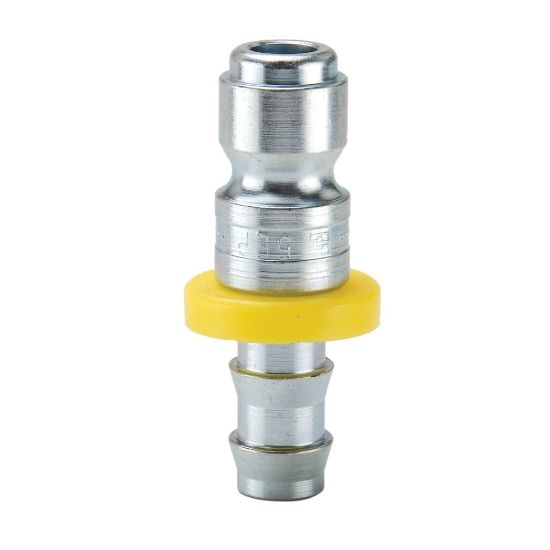

8CP - Tru-Flate, Automotive Interchange Quick Connect Air Couplings - 10 Series

Parker's general purpose Tru-Flate pneumatic, quick connect air couplers and nipples are ideal for use across a spectrum of applications where low pressure air or fluid lines require fast and easy connection and disconnection.

Availability:

24 in stock

TOPEKA, KS	14
Wichita, KS	5
Springfield, MO	5

Partner Available:

266 in stock

Quantities sourced from Partner Network will incur a 30% upcharge from the displayed price. Unit prices will be adjusted accordingly when these quantities are added to your cart.

SKU 8CP

$10.08/each

Qty:

Bypass upcharge for backordered quantity. Check this box if you prefer to backorder out of stock quantities from Hyspeco for this item, then click Add To Cart.

Products specifications

Attribute name	Attribute value
UOM	EA	Coupling Half	Male Nipple
Hose I.D. (inch)	1/4	Body Material	Steel
Connection Thread Size (inch)	na	Body Size (inch)	1/4
Connection Type	Push-Lok hose barb	Hex Size	na inch
Maximum Operating Pressure	300 psi	Maximum Operating Temperature	250 °F
Interchange Type	Tru-Flate design	Minimum Operating Temperature	-40 °F
Plating Type	Zinc with clear trivalent chromate	Dimensional Weight	0.013329336530775381 lb
Valve Type	Unvalved

Product resources

Compliance, Certifications & Safety

Safety Guide: Quick Couplings and Related Accessories (PDF)

Literature and Reference Materials
