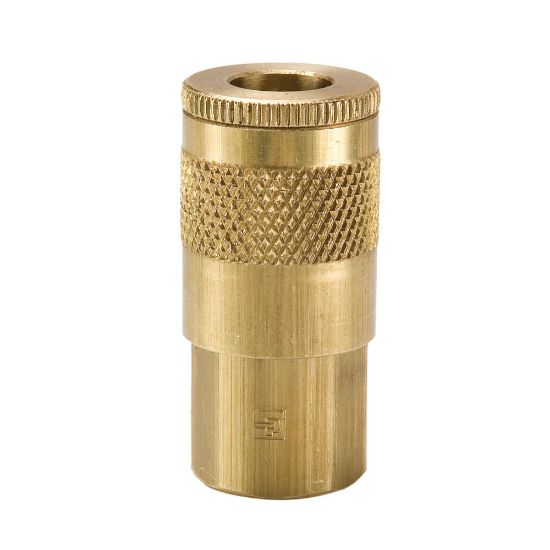

B13A - Tru-Flate, Automotive Interchange Quick Connect Air Couplings - 10 Series

Parker's general purpose Tru-Flate pneumatic, quick connect air couplers and nipples are ideal for use across a spectrum of applications where low pressure air or fluid lines require fast and easy connection and disconnection.

Availability:	Backordered Estimated Lead Time: 12 days
Partner Available:	79 in stock

SKU B13A

$22.14/each

Bypass upcharge for backordered quantity. Check this box if you prefer to backorder out of stock quantities from Hyspeco for this item, then click Add To Cart.

Products specifications

Attribute name	Attribute value
UOM	EA	Body Material	BRASS
Body Size (inch)	1/4	Hose I.D. (inch)	na
Connection Thread Size (inch)	1/8 - 27	Coupling Half	Female Coupler
Connection Type	Female NPTF	Minimum Operating Temperature	-40 °F
Hex Size	0.75 inch	Seal Material	Nitrile
Maximum Operating Temperature	250 °F	Interchange Type	Tru-Flate design
Maximum Operating Pressure	300 psi	Valve Type	Tubular
Dimensional Weight	0.02670863309352518 lb	Plating Type	na

Product resources

Compliance, Certifications & Safety

Safety Guide: Quick Couplings and Related Accessories (PDF)

Literature and Reference Materials
