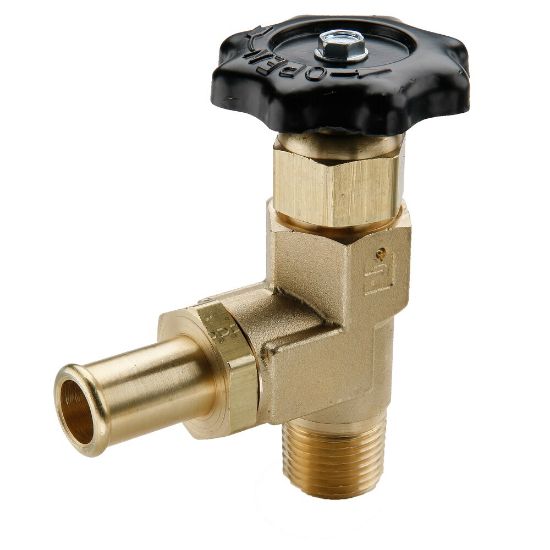

SV404P-12-8 - Truck Valves

Parker's truck valves are a robust, all brass construction with metal-to-metal seats for high heat/fluid compatibility.

Availability:	Backordered Estimated Lead Time: 14 days
Partner Available:	11 in stock

SKU SV404P-12-8

$83.85/each

Bypass upcharge for backordered quantity. Check this box if you prefer to backorder out of stock quantities from Hyspeco for this item, then click Add To Cart.

Products specifications

Attribute name	Attribute value
UOM	EA	Connection 1 Tube O.D. (inch)	na
Connection 1 Thread Size (inch)	na	Connection 2 Style	Male Pipe
Connection 2 Thread Size (inch)	1/2	Connection 1 Style	Hose Barb
Connection 1 Hose I.D. (inch)	3/4	Shape	Right Angle
Style	Hose to Pipe	Handle	Round
Body Material	Brass	Maximum Operating Pressure	150 psi
Maximum Operating Temperature	121 °C	Dimensional Weight	0.5518884892086331 lb
Minimum Operating Temperature	-34 °C	Stem Material	Brass
