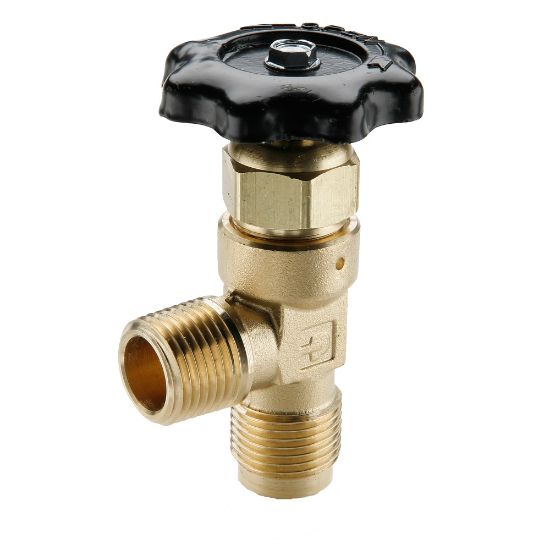

V412F-10-8 - Truck Valves

Parker's truck valves are a robust, all brass construction with metal-to-metal seats for high heat/fluid compatibility.

Availability:	Backordered Estimated Lead Time: 14 days
Partner Available:	Backordered

SKU V412F-10-8

$86.49/each

Bypass upcharge for backordered quantity. Check this box if you prefer to backorder out of stock quantities from Hyspeco for this item, then click Add To Cart.

Products specifications

Attribute name	Attribute value
UOM	EA	Connection 1 Hose I.D. (inch)	na
Connection 1 Tube O.D. (inch)	5/8	Connection 2 Style	Male Pipe
Handle	Round	Style	Tube to Pipe
Shape	Right Angle	Connection 2 Thread Size (inch)	1/2
Connection 1 Thread Size (inch)	na	Connection 1 Style	Male Flare
Minimum Operating Temperature	-34 °C	Body Material	Brass
Maximum Operating Pressure	150 psi	Maximum Operating Temperature	250 °F
Stem Material	Brass	Dimensional Weight	0.5518884892086331 lb
