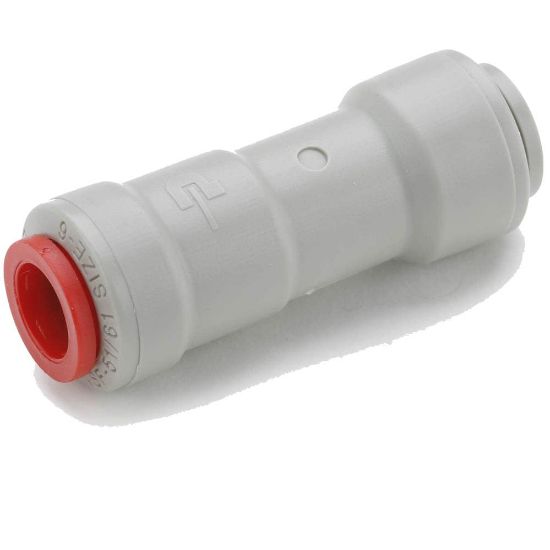

A5VC5-MG - TrueSeal Acetal & Kynar Check Valves - Push to Connect

Parker's Push-to-Connect check valves are manufactured from either acetal or kynar material and allow liquid to flow in one direction.

Availability:	Backordered Estimated Lead Time: 42 days
Partner Available:	3 in stock

SKU A5VC5-MG

$11.03/each

Bypass upcharge for backordered quantity. Check this box if you prefer to backorder out of stock quantities from Hyspeco for this item, then click Add To Cart.

Products specifications

Attribute name	Attribute value
UOM	EA	Cracking Pressure	1/3
Configuration	Tube to Tube	Connection 2 Tube Outside Diameter	5/16" (O.D.)
Body Material	Acetal	Connection 1 Tube Outside Diameter	5/16" (O.D.)
Collet Material	Red	Minimum Operating Temperature	1 °C
Connection 2 Size	n/a	Configuration	Tube to Tube
Gripping Ring Material	Stainless Steel	Maximum Operating Temperature	65 °C
Connection 1 Size	n/a	Seal Material	EPDM
Connection Type	n/a	Shape	In-Line
Connection 2 Type	Push-to-Connect	Body Material	Acetal
Maximum Operating Pressure	10 bar	For Fluid Type	Food & Beverage (Beer, Wine)
Valve Configuration	One Way	Connection 1 Type	Push-to-Connect
Cracking Pressure	1/3 psi

Product resources

Literature and Reference Materials

Water & Beverage Products Quick Reference Guide - Water-QRG (PDF)
