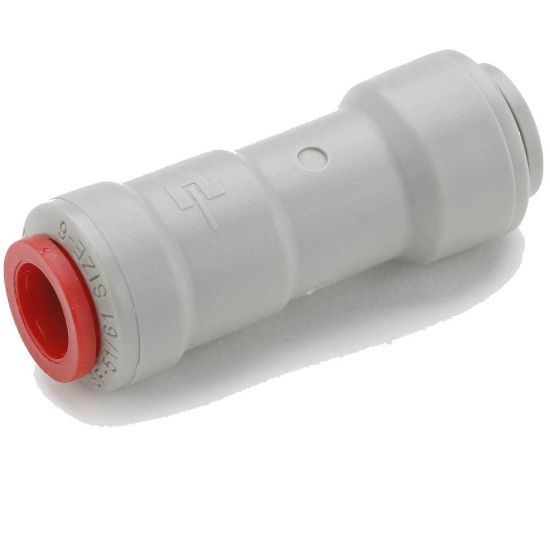

Picture of TrueSeal Acetal & Kynar Check Valves - Push to Connect - A6VC6-MG

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

TrueSeal Acetal & Kynar Check Valves - Push to Connect - A6VC6-MG

Parker's Push-to-Connect check valves are manufactured from either acetal or kynar material and allow liquid to flow in one direction.
Availability:
Backordered
SKU A6VC6-MG
$12.14
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Attribute nameAttribute value
UOMEAConfigurationTube to Tube
Connection 1 Tube Outside Diameter3/8" (O.D.)Connection 2 Tube Outside Diameter3/8" (O.D.)
Body MaterialAcetalCollet MaterialRed
Cracking Pressure1/3DivisionFluid System Connectors Division
Connection Typen/aSeal MaterialEPDM
Maximum Operating Temperature65 °CMaximum Operating Pressure10 bar
ApplicationPneumaticsGripping Ring MaterialStainless Steel
Connection 1 Sizen/aConnection 1 TypePush-to-Connect
Connection 2 TypePush-to-ConnectConnection 2 Size3/8 inch Tube O.D.
ConfigurationTube to TubeShapeIn-Line
Valve ConfigurationOne WayMinimum Operating Temperature34 °F
Body MaterialAcetalCracking Pressure1/3 psi
For Fluid TypeWine
