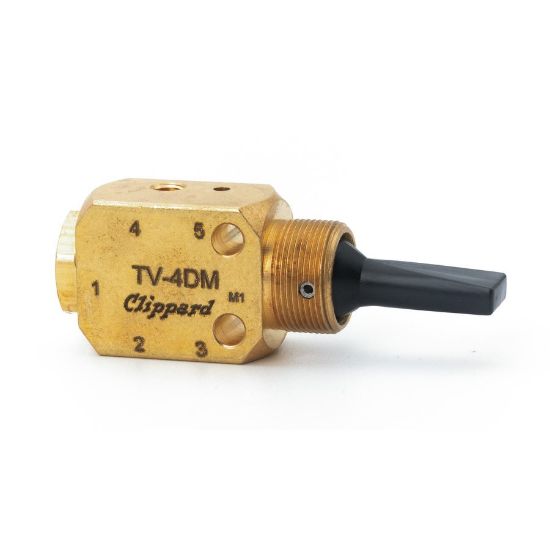

TV-4DM

Name: TV-4DM
SKU: TV-4DM
Price: 45.77 USD
Availability: LimitedAvailability

Availability:

2 Limited Stock

Olivette, MO

Partner Available:

Backordered

Quantities sourced from Partner Network will incur a 30% upcharge from the displayed price. Unit prices will be adjusted accordingly when these quantities are added to your cart.

SKU TV-4DM

$45.77/each

Qty:

Bypass upcharge for backordered quantity. Check this box if you prefer to backorder out of stock quantities from Hyspeco for this item, then click Add To Cart.

Products specifications

Attribute name	Attribute value
UOM	EA	Series	TV
Function	4-Way	Ports	#10-32 Thread
Input	150 psig max.	Travel Arc	30° Each Side of Center
Force	3.0 oz Nominal	Maximum PSI	120 psig
Medium	Air	Flow	125 l/min @ 50 psig; 210 l/min @ 100 psig
Operating Temperature Range	32 to 230° F	Seal Material	Nitrile Std., FKM & Krytox Optional
