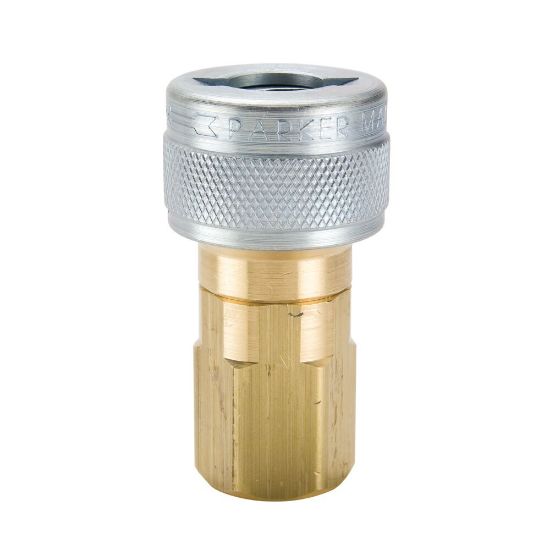

TL-251-4FP - Twist Lock Schrader Interchange, Quick Connect Air Couplings - TL Series

Parker's twist lock interchange pneumatic, quick connect air couplers and nipples are ideal for use across a spectrum of applications where low pressure air or fluid lines require fast and easy connection and disconnection.

Availability:	Backordered Estimated Lead Time: 12 days
Partner Available:	156 in stock

SKU TL-251-4FP

$26.50/each

Bypass upcharge for backordered quantity. Check this box if you prefer to backorder out of stock quantities from Hyspeco for this item, then click Add To Cart.

Products specifications

Attribute name	Attribute value
UOM	EA	Valve Type	Tubular
Connection Type	Female NPTF	Body Size (inch)	1/4
Connection Thread Size (inch)	1/4 - 18	Coupling Half	Female Coupler
Hose I.D. (inch)	na	Maximum Operating Temperature	250 °F
Minimum Operating Temperature	-40 °F	Hex Size	0.75 inch
Dimensional Weight	0.03998800959232614 lb	Plating Type	Zinc with clear trivalent chromate plating on steel sleeve
Seal Material	Nitrile	Body Material	Brass
Interchange Type	Schrader Twist Lock	Maximum Operating Pressure	300 psi
