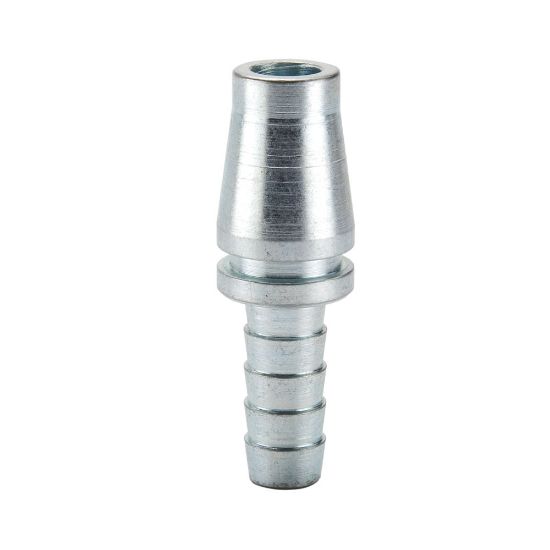

TL-504-4HB - Twist Lock Schrader Interchange, Quick Connect Air Couplings - TL Series

Parker's twist lock interchange pneumatic, quick connect air couplers and nipples are ideal for use across a spectrum of applications where low pressure air or fluid lines require fast and easy connection and disconnection.

Availability:	Backordered Estimated Lead Time: 80 days
Partner Available:	10 in stock

SKU TL-504-4HB

$12.64/each

Bypass upcharge for backordered quantity. Check this box if you prefer to backorder out of stock quantities from Hyspeco for this item, then click Add To Cart.

Products specifications

Attribute name	Attribute value
UOM	EA	Body Size (inch)	1/2
Connection Type	Hose barb	Coupling Half	Male Nipple
Connection Thread Size (inch)	na	Valve Type	Unvalved
Hose I.D. (inch)	1/4	Plating Type	Zinc with clear trivalent chromate
Interchange Type	Schrader Twist Lock	Maximum Operating Pressure	300 psi
Body Material	Steel	Maximum Operating Temperature	250 °F
Minimum Operating Temperature	-40 °F

Product resources

Compliance, Certifications & Safety

Safety Guide: Quick Couplings and Related Accessories (PDF)

Literature and Reference Materials
