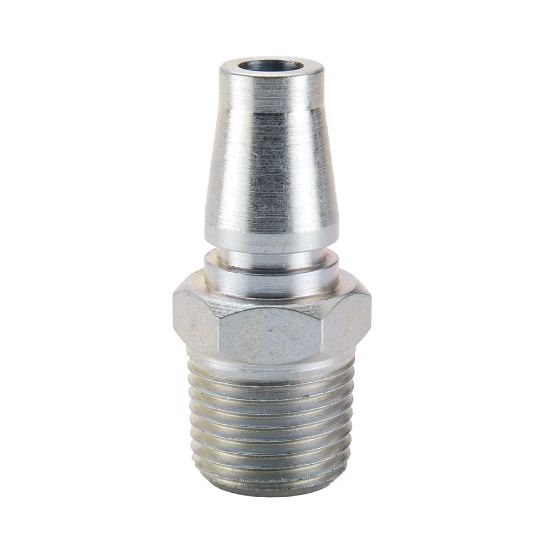

Picture of Twist Lock Schrader Interchange, Quick Connect Air Couplings - TL Series - TL-504-4MP

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

Twist Lock Schrader Interchange, Quick Connect Air Couplings - TL Series - TL-504-4MP

Parker's twist lock interchange pneumatic, quick connect air couplers and nipples are ideal for use across a spectrum of applications where low pressure air or fluid lines require fast and easy connection and disconnection.
Availability:
Backordered
SKU TL-504-4MP
$8.91
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Attribute nameAttribute value
UOMEAHose I.D. (inch)na
Valve TypeUnvalvedCoupling HalfMale Nipple
Connection TypeMale NPTFBody Size (inch)1/2
Connection Thread Size (inch)1/4 - 18Maximum Operating Pressure300 psi
Maximum Operating Temperature250 °FMinimum Operating Temperature-40 °F
Interchange TypeSchrader Twist LockPlating TypeZinc with clear trivalent chromate
DivisionQuick Coupling DivisionApplicationPneumatic
Hex Size0.69 inchProduct TypePush to connect
Body MaterialSteel
California Residents: Prop-65 Warning
Product resources

Compliance, Certifications & Safety

Literature and Reference Materials
