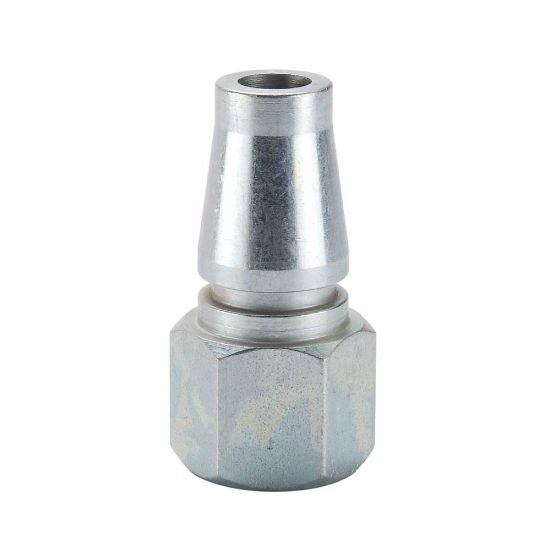

Picture of Twist Lock Schrader Interchange, Quick Connect Air Couplings - TL Series - TL-504-6FP

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

Twist Lock Schrader Interchange, Quick Connect Air Couplings - TL Series - TL-504-6FP

Parker's twist lock interchange pneumatic, quick connect air couplers and nipples are ideal for use across a spectrum of applications where low pressure air or fluid lines require fast and easy connection and disconnection.
Availability:
Backordered
SKU TL-504-6FP
$11.71
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Attribute nameAttribute value
UOMEAValve TypeUnvalved
Body Size (inch)1/2Hose I.D. (inch)na
Connection TypeFemale NPTFCoupling HalfMale Nipple
Connection Thread Size (inch)3/8 - 18Plating TypeZinc with clear trivalent chromate
Product TypePush to connectApplicationPneumatic
Maximum Operating Temperature250 °FMinimum Operating Temperature-40 °F
Body MaterialSteelHex Size0.81 inch
DivisionQuick Coupling DivisionMaximum Operating Pressure300 psi
Interchange TypeSchrader Twist Lock
