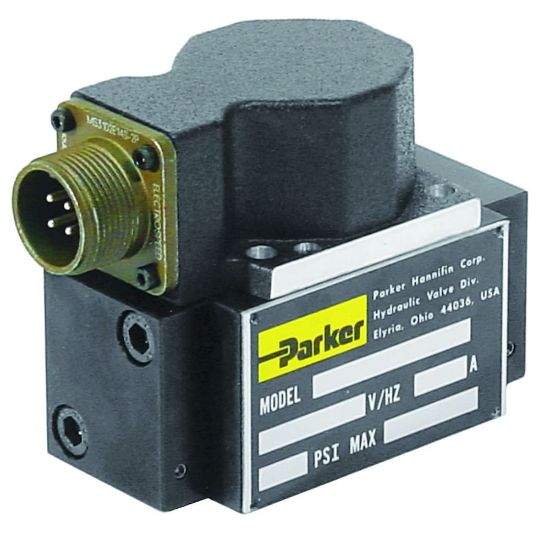

SE2NAAFBVA25 - Two-stage, 4-way, Flapper and Nozzle Servovalve - SE05/SE10/SE15 & SE2N Series

Parker’s SE05, SE10, SE15 & SE2N series valves are two stage, 4-way, flapper and nozzle style servovalves.

Availability:	Backordered Estimated Lead Time: 124 days
Partner Available:	Backordered

SKU SE2NAAFBVA25

$32,571.84/each

Bypass upcharge for backordered quantity. Check this box if you prefer to backorder out of stock quantities from Hyspeco for this item, then click Add To Cart.

Products specifications

Attribute name	Attribute value
UOM	EA	Mounting	1.375in; 34.93mm
Flow Rate (gpm)	25	Size	34.93 mm
Maximum Operating Pressure	3000 PSI	Materials of Construction	Aluminum
Minimum Operating Temperature	-22 °F	Body Material	Aluminum
Product Style	Servovalve	Maximum Operating Temperature	+266 °F
Additional Options	Consult catalog for additional features	Resistance	80 Ohms; 40 mA (Parallel); 20 mA (Series) ohm-cm
Maximum Flow Rate	95 L/min	Actuation Type	Hydraulic Pressure
Operating Pressure	210 bar	Seal Material	Fluorocarbon
Maximum Operating Pressure	210 bar	Weight	1.1 kg
Response Time	Standard
