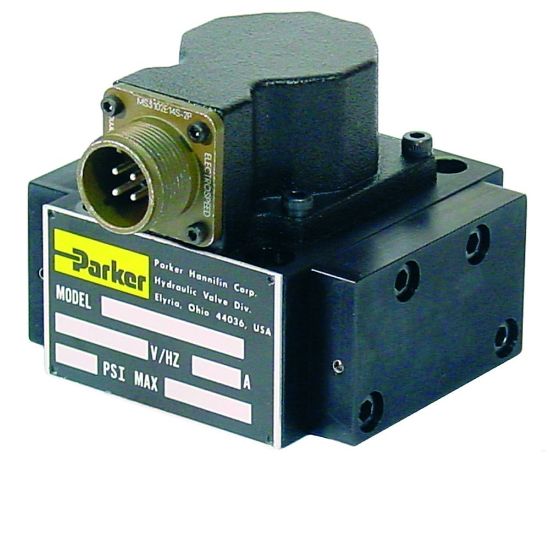

SE20SAAFPVA16.5 - Two-stage, 4 way, Flapper and Nozzle Servovalve - SE20 Series

Parker’s SE20 series valve is a two stage, 4-way, flapper and nozzle style servovalve.

Availability:	Backordered Estimated Lead Time: 124 days
Partner Available:	Backordered

SKU SE20SAAFPVA16.5

$24,281.88/each

Bypass upcharge for backordered quantity. Check this box if you prefer to backorder out of stock quantities from Hyspeco for this item, then click Add To Cart.

Products specifications

Attribute name	Attribute value
UOM	EA	Size	ISO 10372 standard 22.23 mm
Flow Rate (gpm)	16.5	Maximum Operating Pressure	4500 PSI
Actuation Type	Hydraulic Pressure	Weight	1 kg
Valve Type	Servovalve	Resistance	80 Ohms; 40 mA (Parallel); 20 mA (Series) ohm-cm
Maximum Operating Temperature	+140 °F	Seal Material	Fluorocarbon
Maximum Flow Rate	16.5 Gal/min	Pilot Port Type	Internal
Connection Type	Port P; (+) signal to A, C	Signal Input	Standard
Minimum Operating Temperature	-4 °F	Body Material	Aluminum
Additional Options	Consult catalog for additional features	Maximum Operating Pressure	315 bar

Product resources

Literature and Reference Materials

Two-stage, 4 way, Flapper and Nozzle Servovalve Catalog - SE20 Series (PDF)
