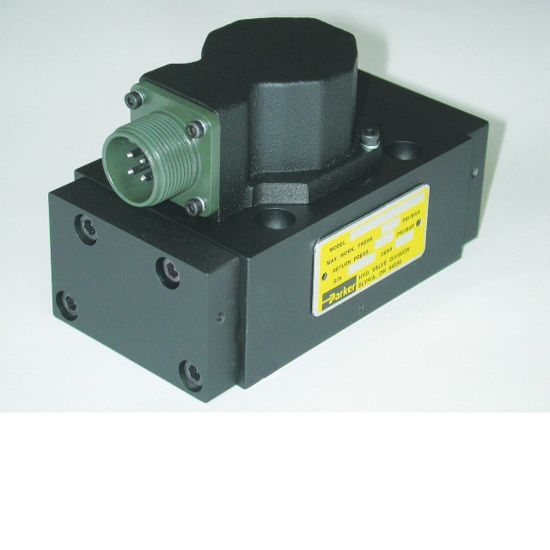

SE31SAAAANA15 - Two-stage, 4 way, Flapper and Nozzle Servovalve - SE31 Series

Parker’s SE31 series valve is a two stage, 4-way, flapper and nozzle style servovalve and is designed to fit onto DIN NG10 or NFPA D05 port patterns.

Availability:	Backordered Estimated Lead Time: 115 days
Partner Available:	Backordered

SKU SE31SAAAANA15

$24,281.88/each

Bypass upcharge for backordered quantity. Check this box if you prefer to backorder out of stock quantities from Hyspeco for this item, then click Add To Cart.

Products specifications

Attribute name	Attribute value
UOM	EA	Mounting Type	D05HE (no Y port)
Maximum Operating Pressure	3000 PSI	Flow Rate (gpm)	15
Additional Options	Consult catalog for additional features	Connection Type	Port C1, (+) signal to A, C
Actuation Type	Hydraulic Pressure	Maximum Operating Temperature	+140 °F
Seal Material	Nitrile	Maximum Operating Pressure	210 bar
Mounting Type	D05HE (no Y port)	Valve Type	Servovalve
Pilot Port Type	Internal	Resistance	40 Ohms; 60 mA (Parallel); 30mA (Series) ohm-cm
Minimum Operating Temperature	-4 °F	Body Material	Aluminum
Weight	2.4 lb	Maximum Flow Rate	15 Gal/min
Signal Input	Standard

Product resources

Literature and Reference Materials

Two-stage, 4 way, Flapper and Nozzle Servovalve Catalog - SE31 Series (PDF)
