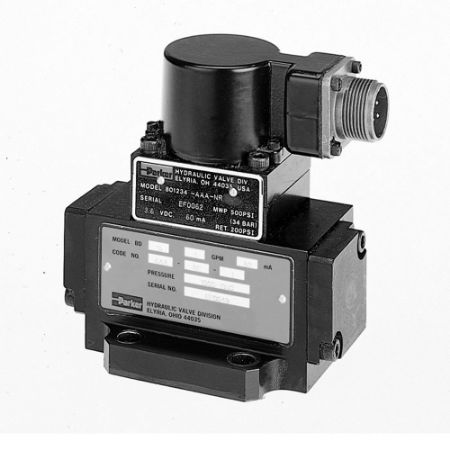

Two-Stage Torque Motor Servovalve – BD Series
*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.
Parker’s BD series valves will provide accurate control of rotary and linear actuators when used in conjunction with Series BD90 and BD101 servo amplifiers or a motion controller.
Markets:
• Defense
• Entertainment Automation
• Factory Automation
• Lumber & Wood
• Miscellaneous Industrial
• Miscellaneous Manufacturing
• Miscellaneous Processing
• Power Generation
Features/Benefits:
• Rugged reliable trouble-free operation
• Reduced contaminant sensitivity
• Linear flow gain characteristics
• Intrinsically safe model available
• Explosion proof model available
Applications:
• Suitable for general hydraulic applications
Read More...Markets:
• Defense
• Entertainment Automation
• Factory Automation
• Lumber & Wood
• Miscellaneous Industrial
• Miscellaneous Manufacturing
• Miscellaneous Processing
• Power Generation
Features/Benefits:
• Rugged reliable trouble-free operation
• Reduced contaminant sensitivity
• Linear flow gain characteristics
• Intrinsically safe model available
• Explosion proof model available
Applications:
• Suitable for general hydraulic applications
| Action | SKU | Availability | Partner Available | Price | UOM | Size | Flow Rate (gpm) | Current (amps) | Operating Pressure | Maximum Operating Temperature | Maximum Flow Rate | Maximum Operating Pressure | Resistance | Response Time | Body Material | Actuation Type | Seal Material | Filter Efficiency Rating | Electrical Connection | Minimum Operating Temperature | Valve Type | Options |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| BD15AAANB1 | Backordered | Backordered | $7,178.64/each | EA | S04 | 1 | 60 (Standard) | 2600 - 3000 | 180 °F | 1 Gal/min | 3000 psi | 60 Ω | 26.0 ms 10 to 90% | Aluminum | Hydraulic Pressure | Nitrile | ISO Code 17/15/12 | C2B (Standard) | 30 °F | Servo Valve | Standard Valve | |
| BD15AAANB10 | Backordered | Backordered | $7,178.64/each | EA | S04 | 10 | 60 (Standard) | 2600 - 3000 | 180 °F | 10 Gal/min | 3000 psi | 60 Ω | 26.0 ms 10 to 90% | Aluminum | Hydraulic Pressure | Nitrile | ISO Code 17/15/12 | C2B (Standard) | 30 °F | Servo Valve | Standard Valve | |
| BD15AAANB15 | Backordered | Backordered | $6,836.80/each | EA | S04 | 15 | 60 (Standard) | 2600 - 3000 | 180 °F | 15 Gal/min | 3000 psi | 60 Ω | 10 to 90%, 26 ms ms | Aluminum | Hydraulic Pressure | Nitrile | SAE Class 3 or better | C2B (Standard) | 30 °F | Servo Valve | Standard Valve | |
| BD15AAANB2.5 | Backordered | Backordered | $7,178.64/each | EA | S04 | 2.5 | 60 (Standard) | 2600 - 3000 | 180 °F | 2.5 Gal/min | 3000 psi | 60 Ω | 26.0 ms 10 to 90% | Aluminum | Hydraulic Pressure | Nitrile | SAE Class 3 or better | C2B (Standard) | 30 °F | Servo Valve | Standard Valve | |
| BD15AAANB20 | Backordered | Backordered | $7,178.64/each | EA | S04 | 20 | 60 (Standard) | 2600 - 3000 | 180 °F | 20 Gal/min | 3000 psi | 60 Ω | 10 to 90%, 26 ms ms | Aluminum | Hydraulic Pressure | Nitrile | ISO Code 17/15/12 | C2B (Standard) | 30 °F | Servo Valve | Standard Valve | |
| BD15AAANB5 | Backordered | Backordered | $7,178.64/each | EA | S04 | 5 | 60 (Standard) | 2600 - 3000 | 180 °F | 5 Gal/min | 3000 psi | 60 Ω | 10 to 90%, 26 ms ms | Aluminum | Hydraulic Pressure | Nitrile | ISO Code 17/15/12 | C2B (Standard) | 30 °F | Servo Valve | Standard Valve | |
| BD15AAANC10 | Backordered | Backordered | $7,178.64/each | EA | S04 | 10 | 60 (Standard) | 2000 - 2500 | 180 °F | 10 Gal/min | 2500 psi | 60 Ω | 26.0 ms 10 to 90% | Aluminum | Hydraulic Pressure | Nitrile | ISO Code 17/15/12 | C2B (Standard) | 30 °F | Servo Valve | Standard Valve | |
| BD15AAANC2.5 | Backordered | Backordered | $7,178.64/each | EA | S04 | 2.5 | 60 (Standard) | 2000 - 2500 | 180 °F | 2.5 Gal/min | 2500 psi | 60 Ω | 26.0 ms 10 to 90% | Aluminum | Hydraulic Pressure | Nitrile | SAE Class 3 or better | C2B (Standard) | 30 °F | Servo Valve | Standard Valve | |
| BD15AAANC20 | Backordered | Backordered | $7,178.64/each | EA | S04 | 20 | 60 (Standard) | 2000 - 2500 | 180 °F | 20 Gal/min | 2500 psi | 60 Ω | 26.0 ms 10 to 90% | Aluminum | Hydraulic Pressure | Nitrile | ISO Code 17/15/12 | C2B (Standard) | 30 °F | Servo Valve | Standard Valve | |
| BD15AAANC5 | Backordered | Backordered | $7,178.64/each | EA | S04 | 5 | 60 (Standard) | 2000 - 2500 | 180 °F | 5 Gal/min | 2500 psi | 60 Ω | 10 to 90%, 26 ms ms | Aluminum | Hydraulic Pressure | Nitrile | ISO Code 17/15/12 | C2B (Standard) | 30 °F | Servo Valve | Standard Valve | |
| BD15AAAND10 | Backordered | Backordered | $7,178.64/each | EA | S04 | 10 | 60 (Standard) | 1400 - 1950 | 180 °F | 10 Gal/min | 1950 psi | 60 Ω | 10 to 90%, 26 ms ms | Aluminum | Hydraulic Pressure | Nitrile | ISO Code 17/15/12 | C2B (Standard) | 30 °F | Servo Valve | Standard Valve | |
| BD15AAAND15 | Backordered | Backordered | $7,178.64/each | EA | S04 | 15 | 60 (Standard) | 1400 - 1950 | 180 °F | 15 Gal/min | 1950 psi | 60 Ω | 10 to 90%, 26 ms ms | Aluminum | Hydraulic Pressure | Nitrile | SAE Class 3 or better | C2B (Standard) | 30 °F | Servo Valve | Standard Valve | |
| BD15AAAND2.5 | Backordered | Backordered | $6,836.80/each | EA | S04 | 2.5 | 60 (Standard) | 1400 - 1950 | 180 °F | 2.5 Gal/min | 1950 psi | 60 Ω | 26.0 ms 10 to 90% | Aluminum | Hydraulic Pressure | Nitrile | SAE Class 3 or better | C2B (Standard) | 30 °F | Servo Valve | Standard Valve | |
| BD15AAAND20 | Backordered | Backordered | $7,178.64/each | EA | S04 | 20 | 60 (Standard) | 1400 - 1950 | 180 °F | 20 Gal/min | 1950 psi | 60 Ω | 26.0 ms 10 to 90% | Aluminum | Hydraulic Pressure | Nitrile | SAE Class 3 or better | C2B (Standard) | 30 °F | Servo Valve | Standard Valve | |
| BD15AAAND5 | Backordered | Backordered | $6,836.80/each | EA | S04 | 5 | 60 (Standard) | 1400 - 1950 | 180 °F | 5 Gal/min | 1950 psi | 60 Ω | 10 to 90%, 26 ms ms | Aluminum | Hydraulic Pressure | Nitrile | ISO Code 17/15/12 | C2B (Standard) | 30 °F | Servo Valve | Standard Valve | |
| BD15AAANE10 | Backordered | Backordered | $7,178.64/each | EA | S04 | 10 | 60 (Standard) | 1000 - 1350 | 180 °F | 10 Gal/min | 1350 psi | 60 Ω | 26.0 ms 10 to 90% | Aluminum | Hydraulic Pressure | Nitrile | SAE Class 3 or better | C2B (Standard) | 30 °F | Servo Valve | Standard Valve | |
| BD15AAANE15 | Backordered | Backordered | $7,178.64/each | EA | S04 | 15 | 60 (Standard) | 1000 - 1350 | 180 °F | 15 Gal/min | 1350 psi | 60 Ω | 26.0 ms 10 to 90% | Aluminum | Hydraulic Pressure | Nitrile | SAE Class 3 or better | C2B (Standard) | 30 °F | Servo Valve | Standard Valve | |
| BD15AAANE2.5 | Backordered | Backordered | $7,178.64/each | EA | S04 | 2.5 | 60 (Standard) | 1000 - 1350 | 180 °F | 2.5 Gal/min | 1350 psi | 60 Ω | 26.0 ms 10 to 90% | Aluminum | Hydraulic Pressure | Nitrile | SAE Class 3 or better | C2B (Standard) | 30 °F | Servo Valve | Standard Valve | |
| BD15AAANE20 | Backordered | Backordered | $7,178.64/each | EA | S04 | 20 | 60 (Standard) | 1000 - 1350 | 180 °F | 20 Gal/min | 1350 psi | 60 Ω | 26.0 ms 10 to 90% | Aluminum | Hydraulic Pressure | Nitrile | SAE Class 3 or better | C2B (Standard) | 30 °F | Servo Valve | Standard Valve | |
| BD15AAANE5 | Backordered | Backordered | $7,178.64/each | EA | S04 | 5 | 60 (Standard) | 1000 - 1350 | 180 °F | 5 Gal/min | 1350 psi | 60 Ω | 10 to 90%, 26 ms ms | Aluminum | Hydraulic Pressure | Nitrile | ISO Code 17/15/12 | C2B (Standard) | 30 °F | Servo Valve | Standard Valve |
