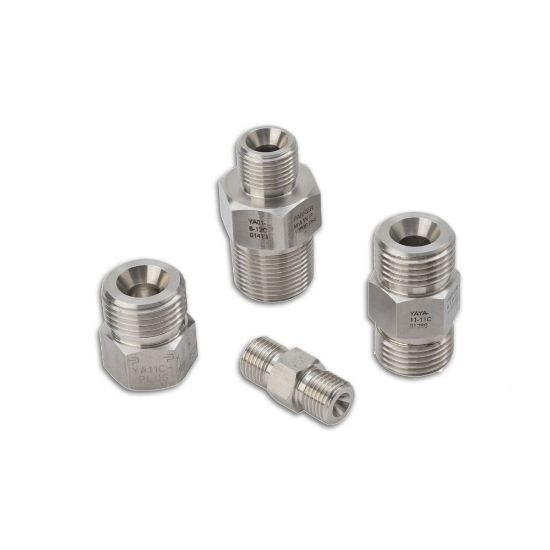

YAY1-11-16C - Type "M" Fitting Adapters

These fitting adapters connect to Type "M" Swivel end fittings and seal with a 58° cone.

Availability:	Backordered Estimated Lead Time: 36 days
Partner Available:	Backordered

SKU YAY1-11-16C

$516.53/each

Bypass upcharge for backordered quantity. Check this box if you prefer to backorder out of stock quantities from Hyspeco for this item, then click Add To Cart.

Products specifications

Attribute name	Attribute value
UOM	EA	Connection 1 Thread Size	1"-12 UNF
Connection 1 Style	Torpedo	Connection 2 Type	Torpedo
Connection 2 Thread Size	1"-14 UNS-LH	Connection 1 Type	Torpedo
Hex Size	28.7 mm	Connection 1 Size	1"-12 inch
Connection 2 Type	UNF Thread	Connection 2 Size	1"-12 inch
Overall Length	3.56 inch	Maximum Operating Pressure	20000 psi
Materials of Construction	Stainless Steel AISI 316

Product resources

Literature and Reference Materials

Catalog 4900 - Parflex Ultra High Pressure Thermoplastic Hose, Fittings and Accessories--CAT-4900 (PDF)
