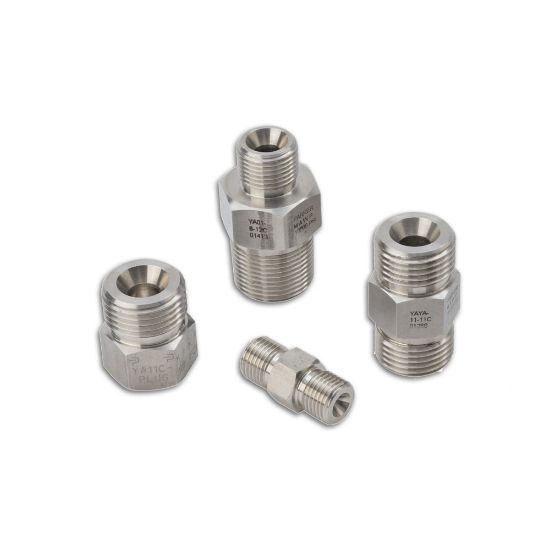

YAY2-8-16C - Type "M" Fitting Adapters

These fitting adapters connect to Type "M" Swivel end fittings and seal with a 58° cone.

Availability:	Backordered Estimated Lead Time: 36 days
Partner Available:	Backordered

SKU YAY2-8-16C

$375.85/each

Bypass upcharge for backordered quantity. Check this box if you prefer to backorder out of stock quantities from Hyspeco for this item, then click Add To Cart.

Products specifications

Attribute name	Attribute value
UOM	EA	Connection 2 Thread Size	1"-14 UNS-LH
Connection 1 Style	Torpedo with Gland Nut and Collar	Connection 2 Type	Torpedo with Gland Nut and Collar
Connection 1 Thread Size	3/4"-16 UNF	Connection 2 Type	UNF Thread
Hex Size	1.38 inch	Connection 1 Type	UNF Thread
Connection 2 Size	3/4"-16 inch	Overall Length	3.56 inch
Connection 1 Size	3/4"-16 inch	Maximum Operating Pressure	138 MPa
Materials of Construction	Stainless Steel AISI 316

Product resources

Literature and Reference Materials

Catalog 4900 - Parflex Ultra High Pressure Thermoplastic Hose, Fittings and Accessories--CAT-4900 (PDF)
