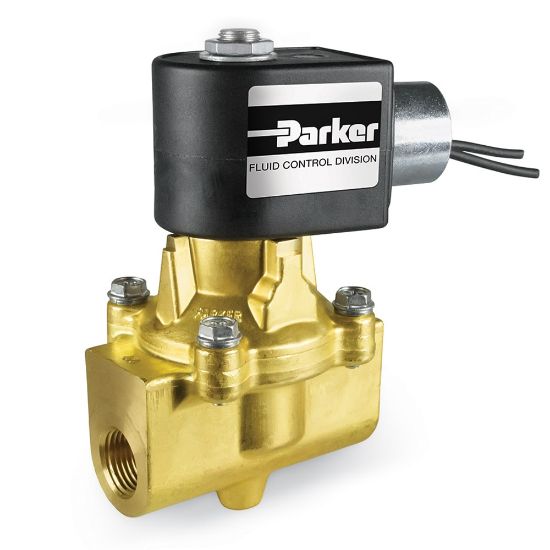

73218BN4UNLVN0C111C2 - UL 429A Listed Actuating Valves

UL 429A certified solenoid valves are required for use as pre-action pilot valves in various fire suppression deluge systems.

Availability:	Backordered Estimated Lead Time: 34 days
Partner Available:	Backordered

SKU 73218BN4UNLVN0C111C2

$347.95/each

Bypass upcharge for backordered quantity. Check this box if you prefer to backorder out of stock quantities from Hyspeco for this item, then click Add To Cart.

Products specifications

Attribute name	Attribute value
UOM	EA	Body Material	BRASS
Port Type	NPT	Seal Material	NBR
Function	Normally Closed	Orifice Size	5/8
Actuation Type	Internally Piloted	Ingress Protection Rating	NEMA 4,4X
Minimum Pressure Differential	5.0	Maximum Pressure Differential	175.0
Valve Type	2 Way	Port Size	1/2
Power Consumption	10.0	Maximum Fluid Temperature	185.0
Maximum Ambient Temperature	150.0	Coil Type	1/2" NPT Conduit w/ 18" Leads
Installation	IOM 7212	Input Voltage	24 VDC
Specifications Met	CSA Listed Safety Shutoff Valve C22.2 no. 139-13	Main Flow Coefficient	4.00
Preventive Maintenance Kit	7K815	Port Type	NPT
Body Material	Brass	Port Size	1/2 inch
Function	Normally Closed (NC)	Valve Type	2-Way
Seal Material	NBR	Actuation Type	Internal Pilot
Ingress Protection Rating	NEMA 4	Maximum Pressure Differential	175.0
Specifications Met	CE - Low Voltage	Configuration	All Ports in Body
Input Voltage	24 VDC	Maximum Fluid Temperature	185 °F
Maximum Ambient Temperature	150 °F	Orifice Size	5/8
Coil Type	1/2" NPT Conduit w/ 18" Leads	Minimum Pressure Differential	5.0
Installation	IOM 7212	Power Consumption	10.0
Main Flow Coefficient	4.00	Preventive Maintenance Kit	7K815
