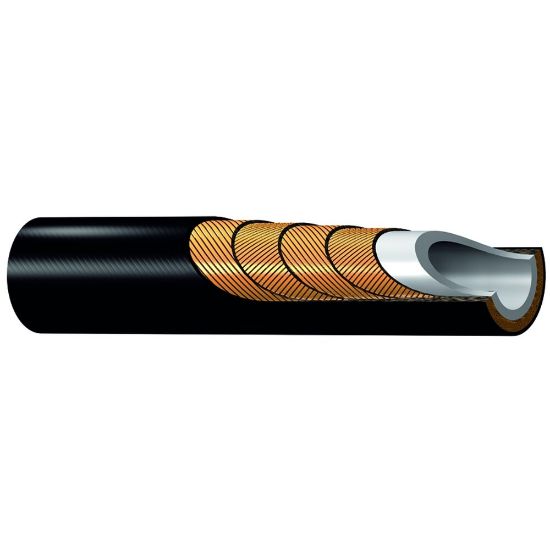

Picture of Ultra High Pressure Hose - 2440N/2448N - 2440N-06V91

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

Ultra High Pressure Hose - 2440N/2448N - 2440N-06V91

High pressure Polyflex hose with low volumetric expansion for offshore applications such as, control fluids, acidizing, methanol injection and well stimulation.
Availability:
Backordered
SKU 2440N-06V91
POR
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Attribute nameAttribute value
UOMFTHose I.D. (inch)3/8
Maximum Working Pressure (psi)12,688Minimum Operating Temperature-40 °F
DivisionParflex DivisionDesign Factor4:1
Maximum Operating Temperature100 °COutside Diameter19.5 mm
Cover MaterialPolyurethaneInside Diameter9.5 mm
Minimum Bend Radius7-1/2 inchHose Inner Tube MaterialMethanol Washed
MediaChemicals (Methanol) - Check your fluid compatibility with our catalogue chart.Specifications MetISO 13628-5
Compatible FittingLX SeriesApplicationControl Fluids
Maximum Operating Pressure875 barWeight0.73 kg/m
Hose Reinforcement Material4 Spirals of Maximum Tensile Steel Wire
