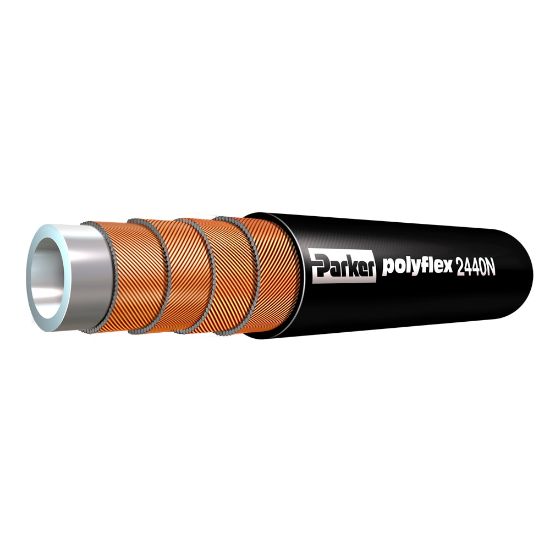

2440N-12V91 - Ultra High Pressure Hose - 2440N/2448N

High pressure Polyflex hose with low volumetric expansion for offshore applications such as, control fluids, acidizing, methanol injection and well stimulation.

Availability:	Backordered Estimated Lead Time: 21 days
Partner Available:	Backordered

SKU 2440N-12V91

Products specifications

Attribute name	Attribute value
UOM	FT	Hose I.D. (inch)	3/4
Maximum Working Pressure (psi)	10,000	Minimum Operating Temperature	-40 °F
Design Factor	4:1	Maximum Operating Temperature	212 °F
Cover Material	Polyurethane	Maximum Operating Pressure	69 MPa
Inside Diameter	19 mm	Media	Petroleum Hydraulic Fluids
Hose Inner Tube Material	Methanol Washed	Specifications Met	ISO 13628-5
Compatible Fitting	LX Series	Weight	0.98 lb/ft
Outside Diameter	30.2 mm	Minimum Bend Radius	9-3/4 inch
Hose Reinforcement Material	4 Spirals of Maximum Tensile Steel Wire
