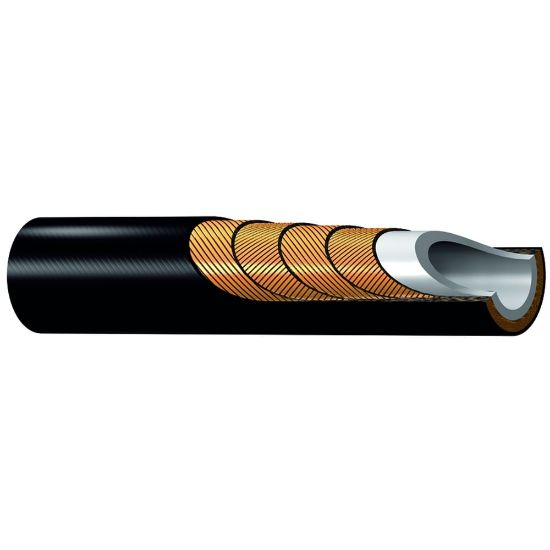

2448N-04V91 - Ultra High Pressure Hose - 2440N/2448N

High pressure Polyflex hose with low volumetric expansion for offshore applications such as, control fluids, acidizing, methanol injection and well stimulation.

Availability:	Backordered Estimated Lead Time: 21 days
Partner Available:	Backordered

SKU 2448N-04V91

Products specifications

Attribute name	Attribute value
UOM	FT	Hose I.D. (inch)	1/4
Maximum Working Pressure (psi)	15,000	Minimum Operating Temperature	-40 °C
Inside Diameter	1/4 inch	Design Factor	4:1
Media	Water	Maximum Operating Temperature	100 °C
Cover Material	Polyurethane	Compatible Fitting	8X Series
Specifications Met	ISO 13628-5	Hose Inner Tube Material	Polyamide 11
Maximum Operating Pressure	103.5 MPa	Weight	0.38 kg/m
Outside Diameter	13.7 mm	Minimum Bend Radius	150 mm
Hose Reinforcement Material	4 Spirals of Maximum Tensile Steel Wire
