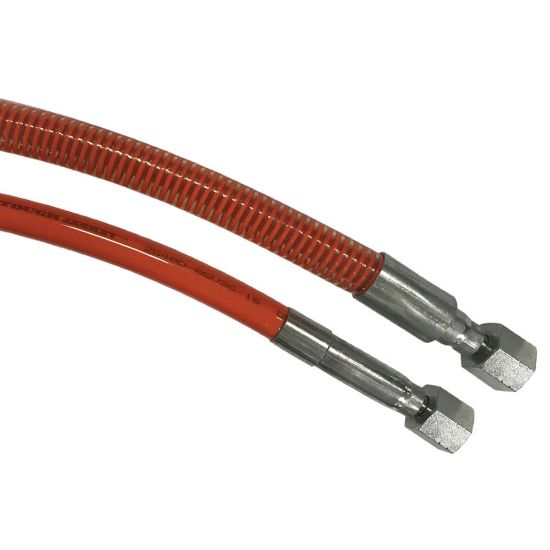

Picture of 2840D-03V36/14 - Ultra High Pressure TOUGHJACKET™ Hose

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

2840D-03V36/14 - Ultra High Pressure TOUGHJACKET™ Hose

TOUGHJACKET PVC-free water blast hose features a compact O.D. that’s up to 25% smaller than PVC-covered hoses, creating an ergonomic advantage for operators.
Availability:
Backordered
Estimated Lead Time: 21 days
Partner Available:784 in stock
SKU 2840D-03V36/14
$30.82/foot
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Attribute nameAttribute value
UOMFTHose I.D. (size)-3
Maximum Working Pressure (psi)58,000NotesUse PFX40-03-TJ
Minimum Operating Temperature-10 °CMediaWater
Cover MaterialPolyurethaneMaximum Operating Temperature70 °C
Outside Diameter19.1 mmSpecifications MetDIN 1829-2
Hose Inner Tube MaterialPolyoxymethylene (POM)Size-3
Minimum Bend Radius200 mmHose Cover TypeToughJACKET™
Inside Diameter3/16 inchCompatible Fitting2X Series
Hose Reinforcement Material6 Spirals of Maximum Tensile Steel WireWeight0.50 lb/ft
Design Factor2.1:1Maximum Operating Pressure58000 psi
