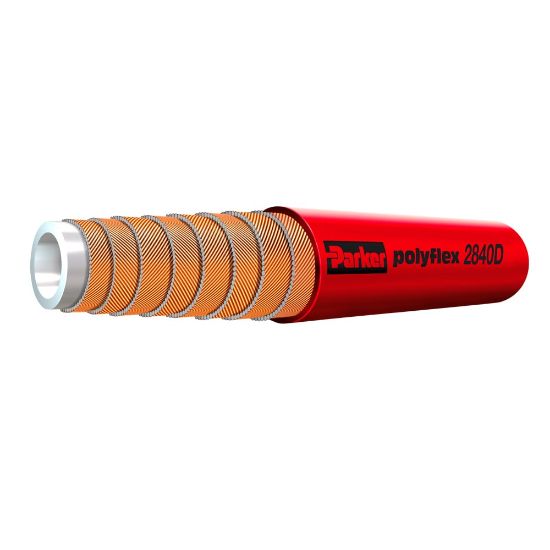

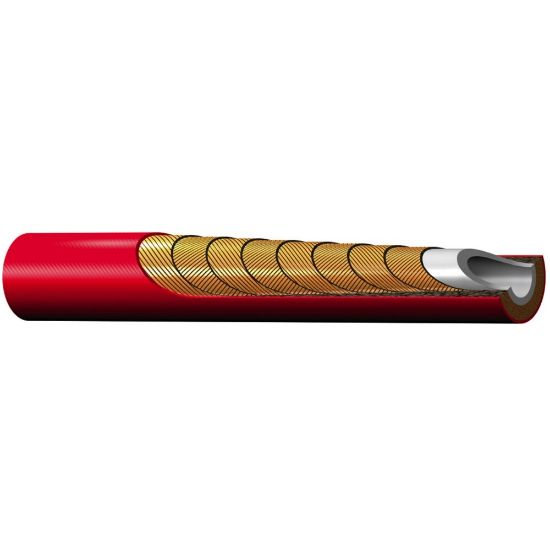

Picture of 2840D-03V34 - Ultra-High Pressure Water Jetting Hose - 58,000 psi - 2840D

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

2840D-03V34 - Ultra-High Pressure Water Jetting Hose - 58,000 psi - 2840D

Note: This product is no longer available - please refer to the “Recommended Products” section of this page for alternative products, or contact us for further assistance.
Availability:
Backordered
Estimated Lead Time: 21 days
Partner Available:19 in stock
SKU 2840D-03V34
$23.09/foot
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Attribute nameAttribute value
UOMFTHose I.D. (inch)3/16
Maximum Working Pressure (psi)58,000Minimum Operating Temperature-10 °C
MediaWaterMinimum Bend Radius8 inch
Maximum Operating Temperature70 °CCover MaterialPolyamide (PA)
Inside Diameter4.8 mmWeight0.63 kg/m
Outside Diameter15 mmSpecifications MetDIN 1829-2
Hose Inner Tube MaterialPolyoxymethylene (POM)Size-3
Compatible Fitting2X SeriesHose Reinforcement Material6 Spirals of Maximum Tensile Steel Wire
Design Factor2:1Maximum Operating Pressure58000 psi
