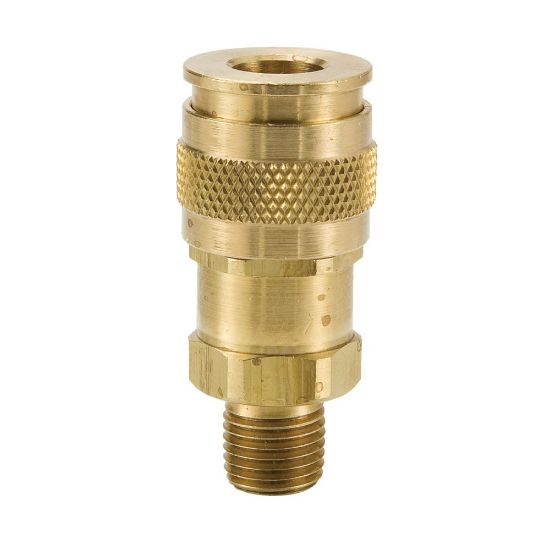

Picture of Universal Interchange, Quick Connect Air Couplers - UC Series - UC-251-4MP

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

Universal Interchange, Quick Connect Air Couplers - UC Series - UC-251-4MP

Parker's general purpose pneumatic, air quick couplers and nipples are ideal for use across a spectrum of applications where low pressure air or fluid lines require fast and easy connection and disconnection.
Availability:
Backordered
SKU UC-251-4MP
$30.50
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Attribute nameAttribute value
UOMEAThread StyleMale
Connection TypeNPTFConnection Thread Size (inch)1/4 - 18
Maximum Operating Pressure150 psiBody MaterialBrass
Specifications MetConnects with Industrial Interchange, 10 series (Tru-Flate), and 50 series (ARO 210) style nipplesMaximum Operating Temperature250 °F
Minimum Operating Temperature-40 °FMediaLow pressure fluids and compressed air
Coupling HalfCouplerDimensional Weight0.026658673061550762 lb
Lock TypeLocking ballsBody Size1/4 inch
Valve TypeTubularDivisionQuick Coupling Division
Sleeve TypePush to ConnectApplicationAir
Seal MaterialNitrile
