US06M35S4N

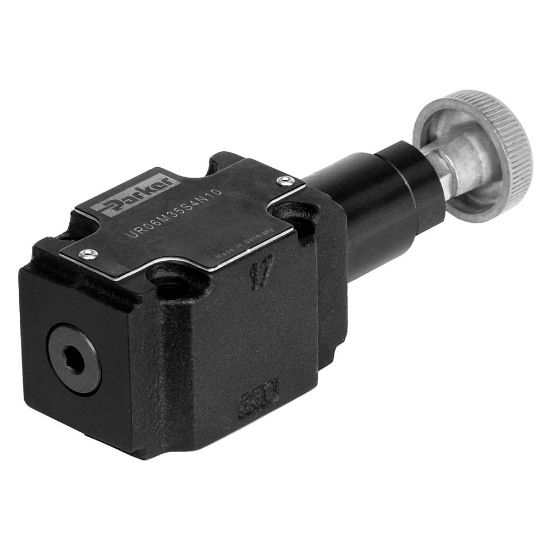

Parker US06M35S4N | Cartridge Valve | Seal Material NBR | Mounting Style Sandwich Plate | Pressure Adjustment Control Type Hand Knob

Availability:	Backordered Estimated Lead Time: 71 days
Partner Available:	Backordered

SKU US06M35S4N

$1,892.00/each

Bypass upcharge for backordered quantity. Check this box if you prefer to backorder out of stock quantities from Hyspeco for this item, then click Add To Cart.

The pilot valves with unloading function series UR06M and US06M in NG06 contribute to trouble-free-operation. They are universally applicable due to two mounting options:

UR06M for subplate mounting

US06M for sandwich plate mounting

The valves complete Parker's wide pilot control range for DIN cartridge valves. By this modular system, many pressure functions are documented.

Features:

Compact, proven design that represents our long-term experience in hydraulics - increases reliability
Pressure range from 70 to 350 bar - enables fine adjustment
MTTFD value 150 years - ensures long service life
Pressure adjustment via acorn nut with lead seal or cylinder lock (on request)
Flow rate maximum 5 l/min

Applications:

Suitable for general hydraulic applications

Markets:

Industrial

Products specifications

Attribute name	Attribute value
UOM	EA	Parker Group	Hydraulic
Seal Material	NBR	Pressure Control Range	350 Bar
Mounting Style	Sandwich Plate	Parker Division	Hydraulic Cartridge System
Pressure Adjustment Control Type	Hand Knob
