*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

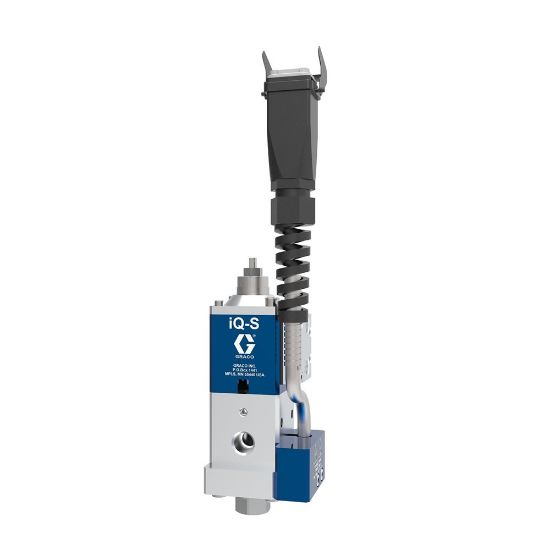

V25AS000DB

Availability:	Backordered Estimated Lead Time: 10 days
Partner Available:	Backordered

SKU V25AS000DB

Products specifications

Attribute name	Attribute value
UOM	EA	Weight	1.5 lb
RTD Type	100 OHM - Platinum	Solenoid Valve Voltage Rating	24 VDC
Applicator Type	Snuff Back	Maximum Air Pressure	8.3 bar; 120 psi
Power Rating	100 W	Gun Activation	Automatic
Mount Location	Remote Mount Solenoid	Maximum Operating Temperature	158 °F
Fluid Inlet Size	1/4 Inch	Maximum Fluid Pressure	276 bar; 4000 psi
Inlet Thread Gender	Female	Component Type	Single Component
Outlet Size	1/4 Inch	Ambient/Warm Melt/Hot Melt	Warm Melt
Phase	1	Inlet Thread Type	NPT
Outlet Thread Gender	Female	Air Inlet Size	1/8 Inch
Outlet Thread Type	NPT
