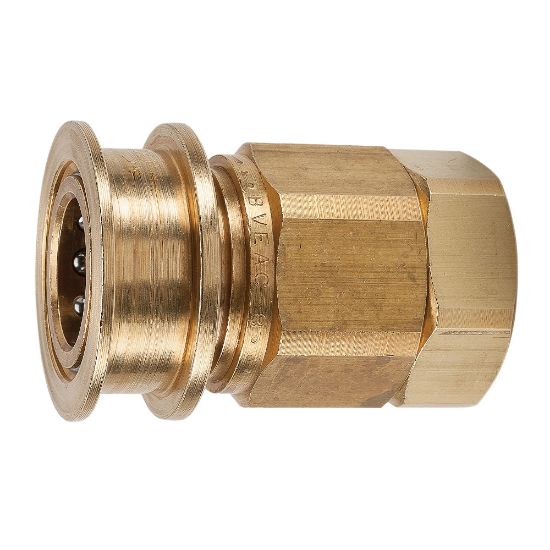

BVEAC6-6FE - Vacuum and Medium Pressure Quick Couplings - EA Series

Parker's multi-purpose quick couplers and nipples are ideal for use in vacuum and medium pressure applications where fluid or gas lines require fast and easy connection and disconnection.

Availability:	Backordered Estimated Lead Time: 36 days
Partner Available:	Backordered

SKU BVEAC6-6FE

$129.63/each

Bypass upcharge for backordered quantity. Check this box if you prefer to backorder out of stock quantities from Hyspeco for this item, then click Add To Cart.

Products specifications

Attribute name	Attribute value
UOM	EA	Body Material	BRASS
Body Size (inch)	3/8	Connection Thread Size (inch)	3/8 - 18
Coupling Half	Female Coupler	Connection Type	Female NPTF
Maximum Operating Pressure	1500	Body Material	Brass
Hex Size	1 inch	Maximum Operating Temperature	300 °F
Valve Type	Poppet	Minimum Operating Temperature	-65 °F
Seal Material	Ethylene Propylene	Plating Type	n/a
Vacuum Pressure Rating	29.7 Inch-Hg

Product resources

Compliance, Certifications & Safety

Safety Guide: Quick Couplings and Related Accessories (PDF)

Literature and Reference Materials
