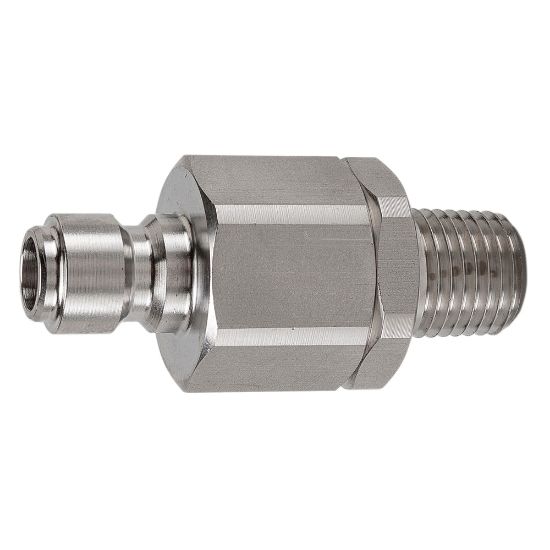

SVEAN4-4M - Vacuum and Medium Pressure Quick Couplings - EA Series

Parker's multi-purpose quick couplers and nipples are ideal for use in vacuum and medium pressure applications where fluid or gas lines require fast and easy connection and disconnection.

Availability:	Backordered Estimated Lead Time: 12 days
Partner Available:	Backordered

SKU SVEAN4-4M

$102.02/each

Bypass upcharge for backordered quantity. Check this box if you prefer to backorder out of stock quantities from Hyspeco for this item, then click Add To Cart.

Products specifications

Attribute name	Attribute value
UOM	EA	Body Material	Stainless Steel
Coupling Half	Male Nipple	Body Size (inch)	1/4
Connection Thread Size (inch)	1/4 - 18	Maximum Operating Pressure	3000
Connection Type	Male NPSF	Minimum Operating Temperature	-40 °F
Body Material	Stainless Steel	Seal Material	Nitrile
Maximum Operating Temperature	250 °F	Valve Type	Poppet
Hex Size	0.88 inch	Plating Type	na
Vacuum Pressure Rating	1/4 Inch-Hg

Product resources

Compliance, Certifications & Safety

Safety Guide: Quick Couplings and Related Accessories (PDF)

Literature and Reference Materials
