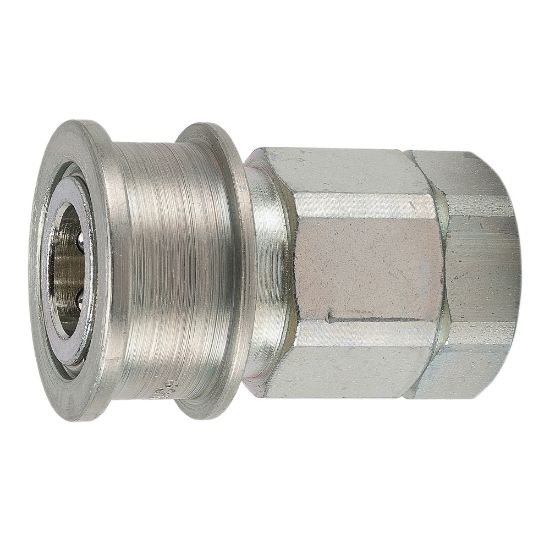

VEAC6-6FV - Vacuum and Medium Pressure Quick Couplings - EA Series

Parker's multi-purpose quick couplers and nipples are ideal for use in vacuum and medium pressure applications where fluid or gas lines require fast and easy connection and disconnection.

Availability:	Backordered Estimated Lead Time: 36 days
Partner Available:	Backordered

SKU VEAC6-6FV

$151.49/each

Bypass upcharge for backordered quantity. Check this box if you prefer to backorder out of stock quantities from Hyspeco for this item, then click Add To Cart.

Products specifications

Attribute name	Attribute value
UOM	EA	Connection Type	Female NPTF
Body Material	Steel	Connection Thread Size (inch)	3/8 - 18
Maximum Operating Pressure	3000	Body Size (inch)	3/8
Coupling Half	Female Coupler	Seal Material	Flourocarbon
Body Material	Steel	Minimum Operating Temperature	-15 °F
Maximum Operating Temperature	400 °F	Vacuum Pressure Rating	29.7 Inch-Hg
Hex Size	1 inch	Plating Type	Zinc with clear trivalent chromate
Valve Type	Poppet

Product resources

Compliance, Certifications & Safety

Safety Guide: Quick Couplings and Related Accessories (PDF)

Literature and Reference Materials
