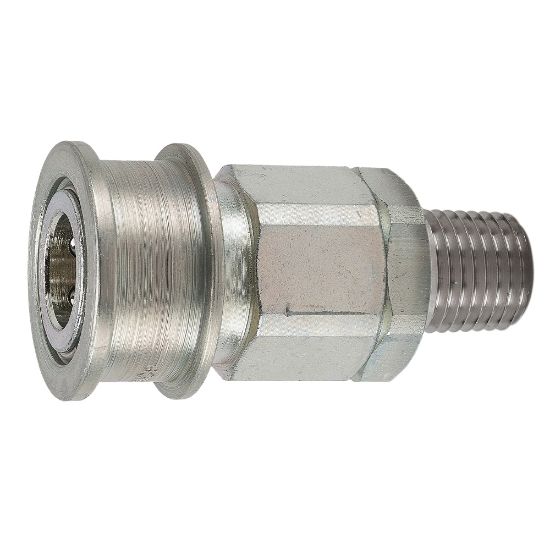

VEAC6-6M - Vacuum and Medium Pressure Quick Couplings - EA Series

Parker's multi-purpose quick couplers and nipples are ideal for use in vacuum and medium pressure applications where fluid or gas lines require fast and easy connection and disconnection.

Availability:	Backordered Estimated Lead Time: 54 days
Partner Available:	Backordered

SKU VEAC6-6M

$95.30/each

Bypass upcharge for backordered quantity. Check this box if you prefer to backorder out of stock quantities from Hyspeco for this item, then click Add To Cart.

Products specifications

Attribute name	Attribute value
UOM	EA	Connection Type	Male NPTF
Maximum Operating Pressure	3000	Connection Thread Size (inch)	3/8 - 18
Coupling Half	Female Coupler	Body Size (inch)	3/8
Body Material	Steel	Vacuum Pressure Rating	29.7 Inch-Hg
Hex Size	1.0 inch	Plating Type	Zinc with clear trivalent chromate
Seal Material	Nitrile	Valve Type	Poppet
Body Material	Steel	Maximum Operating Temperature	250 °F
Minimum Operating Temperature	-40 °F

Product resources

Compliance, Certifications & Safety

Safety Guide: Quick Couplings and Related Accessories (PDF)

Literature and Reference Materials
