VBY064K06N

Availability:	Backordered Estimated Lead Time: 71 days
Partner Available:	Backordered

SKU VBY064K06N

$2,991.24/each

Bypass upcharge for backordered quantity. Check this box if you prefer to backorder out of stock quantities from Hyspeco for this item, then click Add To Cart.

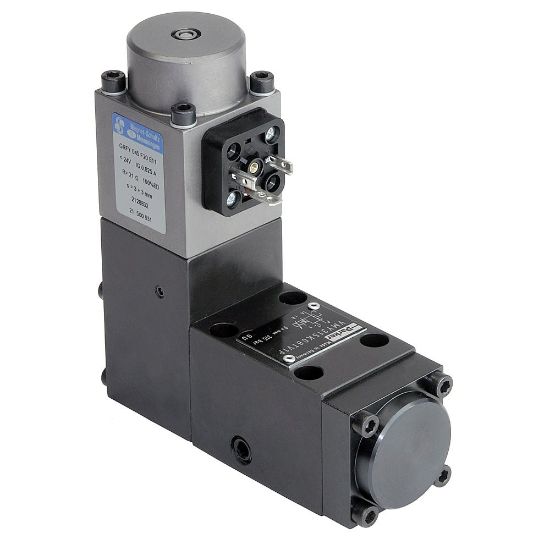

Parker's proportional pressure relief valves series VBY*K in size NG06 provide a very low leakage and thus an optimized energy efficiency. The spool type valves work extremely stable and precise.

Features:

Works stable and precise - for high process accuracy
Low leakage - higher energy efficiency
5 pressure stages - enables fine adjustment
Short delivery time for most versions - no warehousing necessary
Subplate mounting acc. to ISO 5781
Main stage spool type valve
Pilot stage seated type valve
External drain
Proportional adjustment

Applications:

Suitable for general hydraulic applications
Machine tools, e.g. for clamping and other functions

Markets:

Industrial | Machine tools

Products specifications

Attribute name	Attribute value
UOM	EA	Port Connection	NG06/CETOP 03
Actuation Type	Solenoid	Seal Material	NBR
Parker Division	Mobile Hydraulic System	Pressure Control Range	64 Bar
Pressure Adjustment Control Type	Proportional	Parker Group	Hydraulic
