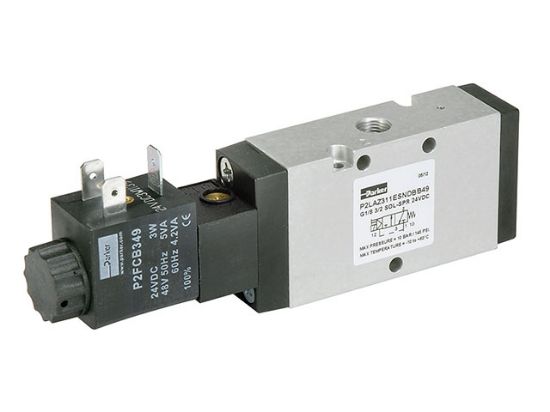

Viking Lite Series Single Solenoid 3-way 2-position Valve - P2LAZ391ESNDBB49

Name: Viking Lite Series Single Solenoid 3-way 2-position Valve - P2LAZ391ESNDBB49
SKU: P2LAZ391ESNDBB49

Single Solenoid, 3-way, 2-position, Spring Return

Availability:

Backordered

SKU P2LAZ391ESNDBB49

$61.44

Products specifications

Attribute name	Attribute value
UOM	EA	Pkg Qty	1
Pilot Supply	Internal	Port	1/8 NPT
CV Factor	0.6	Operator Type Detail	Single
Solenoid Voltage	24VDC	UOM	EA
Override Type	Non-locking	Offset Return Type	Spring Return
Solenoid Connection	22mm Rectangular 3-Pin – Type B Industrial (Use with Enclosure “B”)	Port	1/8 NPT
Trade Name	Viking Lite	Operator Type	Solenoid
Pneumatic Valve Type	Inline Valve	Override Type	Non-locking
Offset Return Type	Spring Return	CV Factor	0.6
Operating Temperature	14°F to 122°F (-10°C to 50°C)	Pilot Supply	Internal
Valve Positions	2-position	Series	Viking Lite
Parker Group	Automation	Solenoid Voltage	24VDC
Port Inch/BSP	NPT	Parker Division	Pneumatic
Valve Passages	3-way	Supply Pressure Range	43.5 to 145 PSIG (3 to 10 bar)
Operator Type Detail	Single
