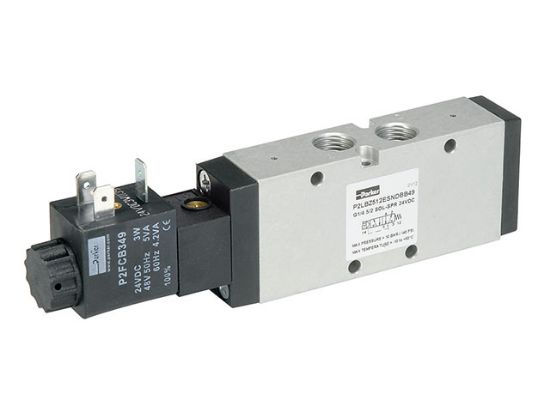

Viking Lite Series Single Solenoid 4-way 2-position Valve - P2LCZ593ESNDBB49

Name: Viking Lite Series Single Solenoid 4-way 2-position Valve - P2LCZ593ESNDBB49
SKU: P2LCZ593ESNDBB49

Single Solenoid, 4-way, 2-position, Spring Return

Availability:

Backordered

SKU P2LCZ593ESNDBB49

$88.52

Products specifications

Attribute name	Attribute value
UOM	EA	UOM	EA
Pkg Qty	1	Port	3/8 NPT
Offset Return Type	Spring Return	Operator Type Detail	Single
Solenoid Voltage	24VDC	Pilot Supply	Internal
Override Type	Non-locking	CV Factor	2.5
Parker Group	Automation	Parker Division	Pneumatic
Port Inch/BSP	NPT	Port	3/8 NPT
Pneumatic Valve Type	Inline Valve	Valve Passages	4-way
Valve Positions	2-position	Offset Return Type	Spring Return
Series	Viking Lite	Trade Name	Viking Lite
Operator Type	Solenoid	Operator Type Detail	Single
Solenoid Voltage	24VDC	Pilot Supply	Internal
Override Type	Non-locking	Operating Temperature	14°F to 122°F (-10°C to 50°C)
Supply Pressure Range	43.5 to 145 PSIG (3 to 10 bar)	Solenoid Connection	22mm Rectangular 3-Pin – Type B Industrial (Use with Enclosure “B”)
CV Factor	2.5
