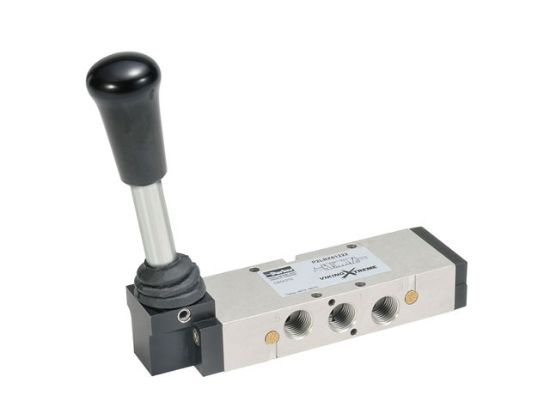

Viking Xtreme Series Manual/Mechanical Valve - 4-way 3-position Inline Perpendicular Lever - P2LAX71122

Name: Viking Xtreme Series Manual/Mechanical Valve - 4-way 3-position Inline Perpendicular Lever - P2LAX71122
SKU: P2LAX71122

Viking Xtreme Series Manual/Mechanical Valve - 4-way 3-position Inline Perpendicular Lever

Availability:

Backordered

SKU P2LAX71122

$131.97

Products specifications

Attribute name	Attribute value
UOM	EA	Operator Type Detail	Inline Perpendicular Lever
Center Condition	Pressure Center	CV Factor	0.7
Port	1/8 BSPP	UOM	EA
Offset Return Type	Detent	Pkg Qty	1
Valve Positions	3-position	Center Condition	Pressure Center
Parker Group	Automation	CV Factor	0.7
Series	Viking Xtreme	Operator Type	Manual/Mechanical
Operator Type Detail	Inline Perpendicular Lever	Operating Temperature	-40°F to 140°F (-40°C to 60°C)
Parker Division	Pneumatic	Port Inch/BSP	BSPP
Supply Pressure Range	Vacuum to 232 PSI (Vacuum to 16 bar)	Offset Return Type	Detent
Valve Passages	4-way	Port	1/8 BSPP
