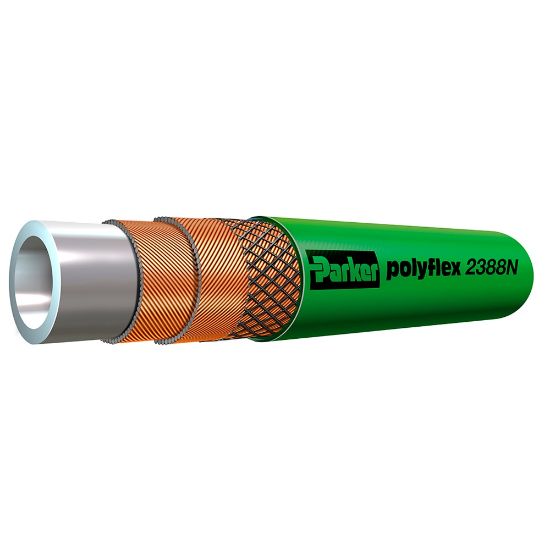

2388N-04V13W - Water Blast Hose - 2380N/2388N

Parker 2380N/2388N high pressure waterblast hoses operate up to 18,000 psi (1200 bar) and are ideal for dirt and paint removal.

Availability:	Backordered Estimated Lead Time: 21 days
Partner Available:	265 in stock

SKU 2388N-04V13W

$11.75/foot

Bypass upcharge for backordered quantity. Check this box if you prefer to backorder out of stock quantities from Hyspeco for this item, then click Add To Cart.

Products specifications

Attribute name	Attribute value
UOM	FT	Hose I.D. (inch)	1/4
Cover Color	Green	Minimum Operating Temperature	-40 °F
Size	-4	Inside Diameter	1/4 inch
Media	Chemicals	Minimum Bend Radius	1-1/2 inch
Cover Material	Polyurethane	Hose Inner Tube Material	Polyamide (PA)
Weight	0.20 lb/ft	Design Factor	2.5:1
Maximum Operating Temperature	158 °F	Specifications Met	DIN 1829-2
Maximum Operating Pressure	128 MPa	Outside Diameter	13.4 mm
Compatible Fitting	KY Series	Hose Reinforcement Material	2 Spirals and 2 Open Spirals of High Tensile Steel Wire

Product resources

Compliance, Certifications & Safety

Literature and Reference Materials

Selector Guides

UHP Waterblast Selection Poster--4900-WB-Selection (PDF)
