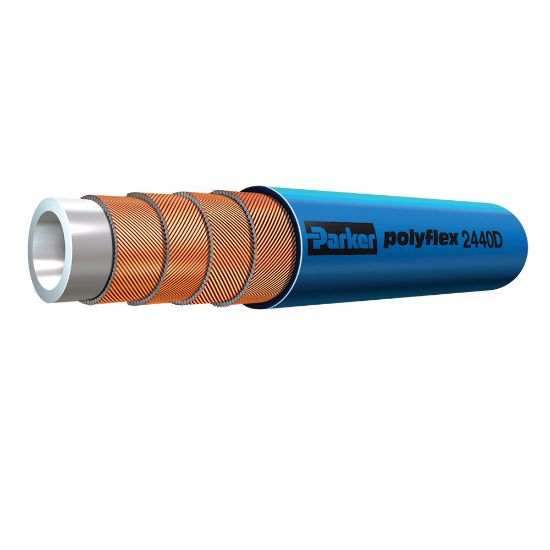

Picture of Water Jetting Hose - 2440D/2448D - 2448D-025V35-TC

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

Water Jetting Hose - 2440D/2448D - 2448D-025V35-TC

Parker Tough Cover Ultra High Pressure Water Jetting Hose handles pressures up to 43,000 psi (3000 bar)
Availability:
Backordered
SKU 2448D-025V35-TC
POR
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Attribute nameAttribute value
UOMFTHose I.D. (inch)5/32
Maximum Working Pressure (psi)43,645DivisionParflex Division
Minimum Operating Temperature14 °FMediaChemicals
Weight0.22 kg/mApplicationConstruction Equipment
Cover MaterialPolyamide (PA)Maximum Operating Temperature158 °F
Specifications MetDIN 1829-2Inside Diameter4 mm
Hose Inner Tube MaterialPolyoxymethylene (POM)Compatible FittingLX Series
Minimum Bend Radius120 mmMaximum Operating Pressure3010 bar
Design Factor2.16:1Outside Diameter9.9 mm
Hose Reinforcement Material4 Spirals of Maximum Tensile Steel Wire
California Residents: Prop-65 Warning
