Picture of Water Jetting Hose - 2640N/2648N - 2640N-08V32

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

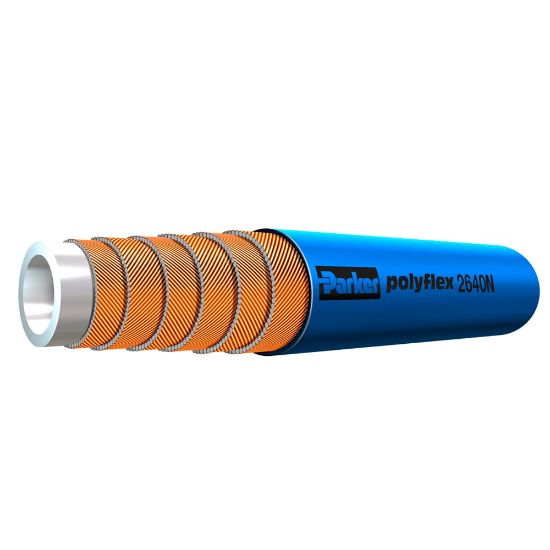

Water Jetting Hose - 2640N/2648N - 2640N-08V32

Parker 2640N/2648N high pressure cleaning hose handles pressures up to 26,000 psi (1,800 bar) in water jetting applications.
Availability:
Backordered
SKU 2640N-08V32
POR
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Attribute nameAttribute value
UOMFTHose I.D. (inch)1/2
Maximum Working Pressure (psi)26,100DivisionParflex Division
Minimum Operating Temperature-10 °CMediaChemicals
Size-8Inside Diameter1/2 inch
Hose Inner Tube MaterialPolyamide (PA)Cover MaterialPolyamide (PA)
Design Factor2.5:1Outside Diameter0.960 inch
ApplicationIndustrial CleaningMaximum Operating Temperature158 °F
Specifications MetDIN 1829-2Minimum Bend Radius290 mm
Maximum Operating Pressure180 MPaWeight1.37 lb/ft
Compatible FittingJX SeriesHose Reinforcement Material6 Spirals of Maximum Tensile Steel Wire
