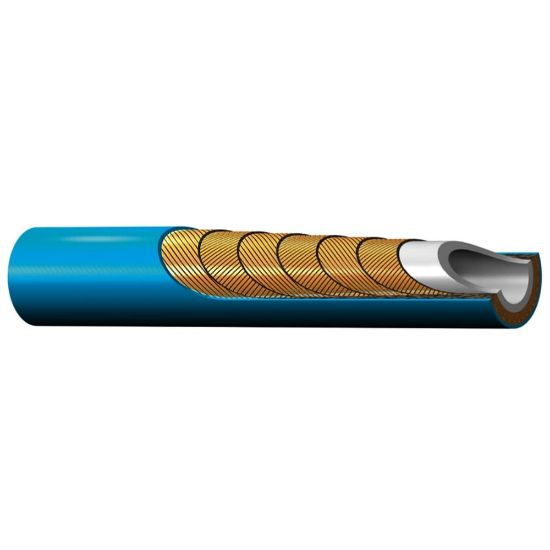

Picture of 2640N-12V32 - Water Jetting Hose - 2640N/2648N

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

2640N-12V32 - Water Jetting Hose - 2640N/2648N

Parker 2640N/2648N high pressure cleaning hose handles pressures up to 26,000 psi (1,800 bar) in water jetting applications.
Availability:
Backordered
Estimated Lead Time: 21 days
Partner Available:Backordered
SKU 2640N-12V32
POR
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Attribute nameAttribute value
UOMFTHose I.D. (inch)3/4
Maximum Working Pressure (psi)20,300Minimum Operating Temperature14 °F
MediaWaterHose Inner Tube MaterialPolyamide (PA)
Maximum Operating Temperature70 °CSize-12
Cover MaterialPolyamide (PA)Inside Diameter3/4 inch
Design Factor2.5:1Specifications MetDIN 1829-2
Maximum Operating Pressure20300 psiCompatible Fitting5X Series
Weight1.45 lb/ftOutside Diameter33 mm
Minimum Bend Radius350 mmHose Reinforcement Material6 Spirals of Maximum Tensile Steel Wire
